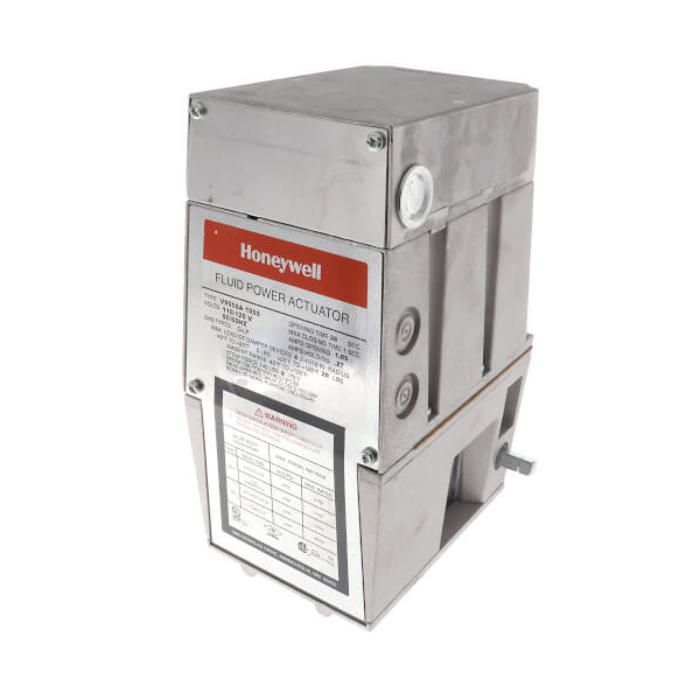

V9055D1000/U
Gas Valve Actuator, Modulating-OFF
by
done_outline108 available in Madison Heights, MI
120 VAC, 26 Second Opening Time, Maximum Operating Pressure 5 psi, With Proof Of Closure For Use With V5055C,E/V5907C,E Valve Bodies.
Features
Includes Integral Shaft To Drive Combustion Air Damper In Unison With Valve
One-Second Maximum Closing Time
Continuously Displays The Valve Position With A Red Indicator When Open And A Yellow Indicator When Closed
Mount In Any Position Directly To Valve Bonnet With Three Setscrews
Provide Final Safety Shutoff When Used With V5055 Or V5097 Gas Valves
Technical Details
Internal Auxiliary Switch
No
Proof Of Closure Auxiliary Switch
Yes
Damper Shaft
Yes
