230-04300-2

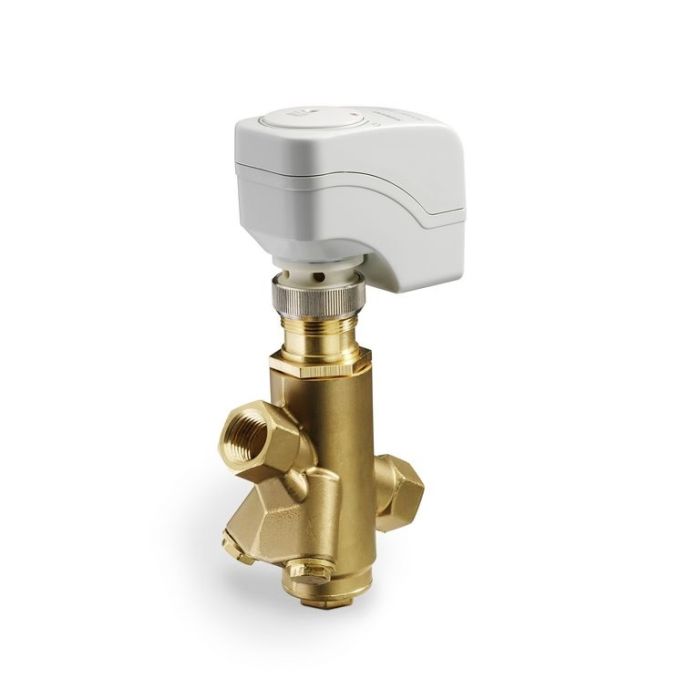

PICV Assembly, 2 Way, 1/2 in., NPT
by
done_outline8888 in stock
addShow Locations
removeHide Locations
Pressure Independent Control Valve, 2 GPM, Brass Body, Stainless Steel Stem, Direct Coupled Actuator, 250 N, Non-Spring Return, 24 VAC, 0.8 VA, Normally Closed, Floating Control, 3 Position.
Features
The Pressure Independent Control Valves Include A Pressure Regulator, A Flow Limiter, And A Control Valve In A Single Device
All Actuators Have A Direct-Coupled Installation, Manual Override And Visual Position Indication
Technical Details
Service
Chilled/Hot Water Applications Or In Water-Glycol Solutions Up To 50% In Closed Loop Systems
Flow Characteristic
Linear
Operating Conditions
34 F To 248 F (1 C To 120 C)
Close-Off Pressure
45 psi
Power Consumption
0.8 VA
Operating Conditions
41 F To 122 F (5 C To 50 C)
Housing
NEMA 1
