238-07320

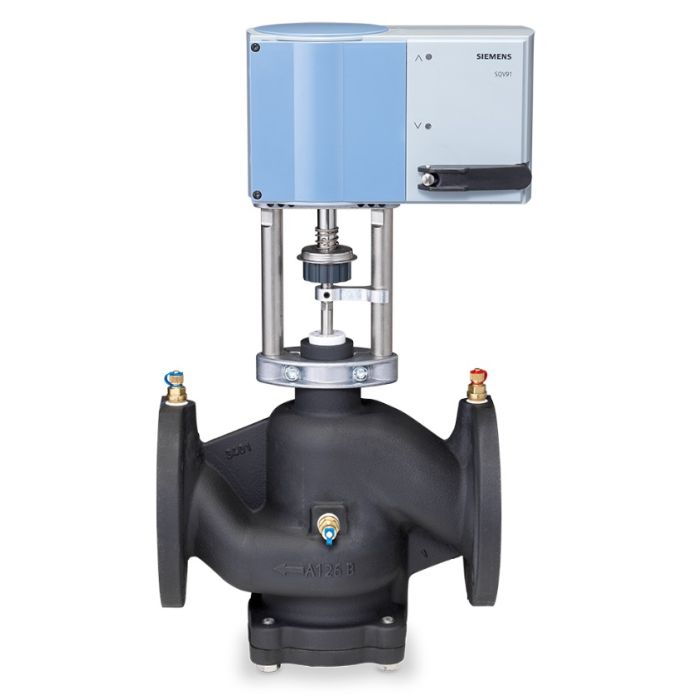

PICV Assembly, 2 Way, 2-1/2 in. Flanged
by
done_outline8888 in stock
addShow Locations
removeHide Locations
Pressure Independent Control Valve, 110 GPM, Cast Iron Body, Stainless Steel Stem, Direct Coupled Actuator, 1100 N, Spring Return, 24 VAC/DC, 20 VA, Normally Open, Floating And Modulating Control, 0 To 10 VDC Or 4 To 20 mA.
Features
The Pressure Independent Control Valves Include A Pressure Regulator, A Flow Limiter, And A Control Valve In A Single Device
SQV Actuators Have A Direct-Coupled Installation, Manual Override And Visual Position Indication
ANSI Class 250
Technical Details
Service
Chilled/Hot Water Applications Or In Water-Glycol Solutions Up To 50% In Closed Loop Systems
Flow Characteristic
Linear
Operating Conditions
34 F To 250 F (1 C To 120 C)
Close-Off Pressure
100 psi
Power Consumption
20 VA, 7.5 Watts
Operating Conditions
23 F To 122 F (-5 C To 50 C)
Electrical Connections
16 To 20 AWG
Housing
NEMA 4/4X (IP66)
