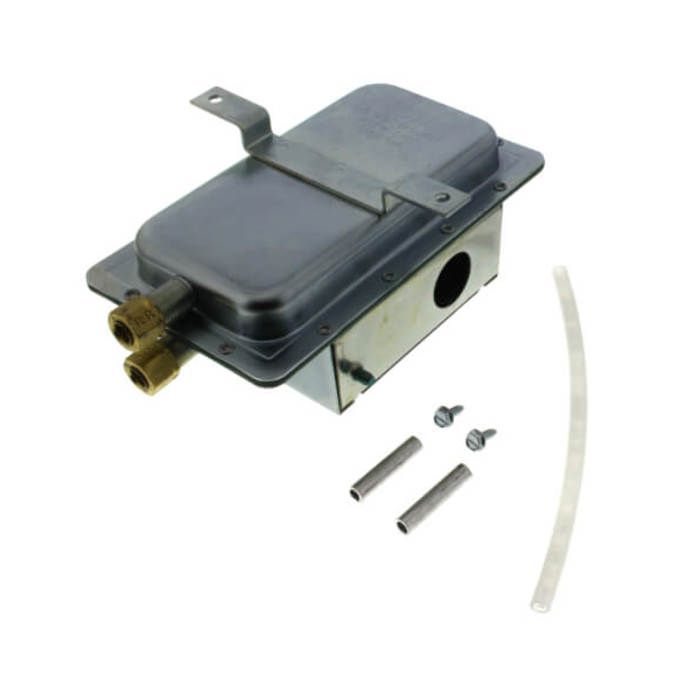

AFS-222-121
Air Flow Sensing Switch
by
done_outline8888 in stock
addShow Locations
removeHide Locations
General Purpose Application, 0.05 +/- 0.02 in. w.c. To 12.0 in. w.c. Field Adjustable Range, SPDT Contact Arrangement, 1/4 in. O.D. Sample Line Connection, 1/2 PSI Max Pressure.
Features
Adjustable air pressure sensing switch
Senses positive, negative or differential air pressure
Set point range: 0.05" to 12.0" W.C.
SPDT switch
Technical Details
Approvals
UL, FM, CSA
Product Life
100,000 cycles
Operating Temperature
-40 to 82°C (-40 to 180°F)
Maximum pressure
0.5 psi (0.03 bar)
Release Range
0.04"w.c to 11.2"w.c
Operating Range
0.07"w.c to 12.0"w.c
Set Point Range
0.05 ± .02"w.c to 12.0"w.c
