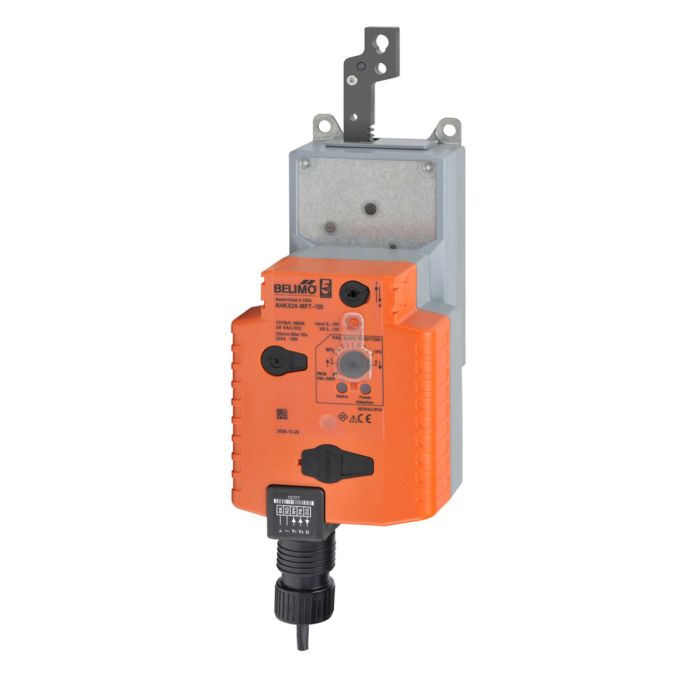

AHQB24-MFT-100
Direct Coupled Actuator, 44 ft.-lb
by
done_outline8888 in stock
addShow Locations
removeHide Locations
Modulating, Non-Spring Return, Linear, 24 VAC, Multi-Function Technology.
Features
For Control Of Damper Surfaces Up To 12 sq. ft.
Electronically Protected Against Overload
The Anti-Rotation Strap Supplied With The Actuator Will Prevent Lateral Movement
Technical Details
Power Consumption
13 W Running, 1.5 W Holding
Operating Conditions
-22 F To 122 F (-30 C To 50 C)
Electrical Connection
3 ft. 18 GA Plenum Cable, With 1/2 in. Conduit Connector
Housing
NEMA 2, IP54 UL Enclosure Type 2
