BAST-221C-B2

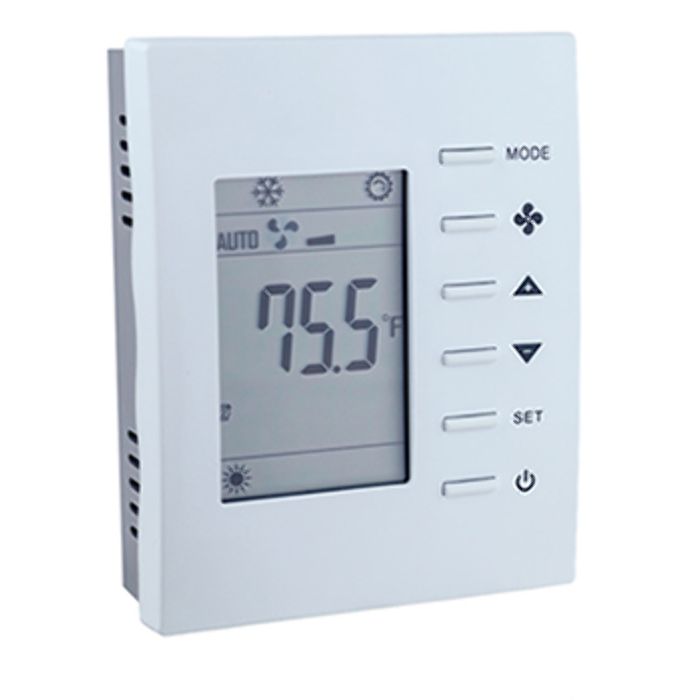

BASstat BACnet Thermostat
by
done_outline8888 in stock
addShow Locations
removeHide Locations
2-Heat/2-Cool/1-Fan Wired, Communicating, BACnet MS/TP Communication Network, EIA-485 Port, Built-In Temperature Sensor.
Features
24 VAC Power Input
Digital Display With Graphical Icons Of Operation, C Or F Display
Single Or Multistage, Binary Outputs For RTU Or AHU Applications
Manual Or Auto-Changeover Modes
Occupied/Unoccupied Modes With 2 Sets Of Cool/Heat Set Points
Effective Run Time Accumulation For Energy Consumption Calculations
Networked Current Temperature Override From BACnet Client (BMS)
Fully Configurable Algorithm Control Parameters: Deadband, Proportional Gain, Integral Rate, Stage Trip Points, Stage Widths, Short Cycle Delay, Maximum Cycles Per Hour
Stand-Alone Operation With Setpoints Reset And Schedule From BACnet BMS Or Optional Full BACnet BMS Control
