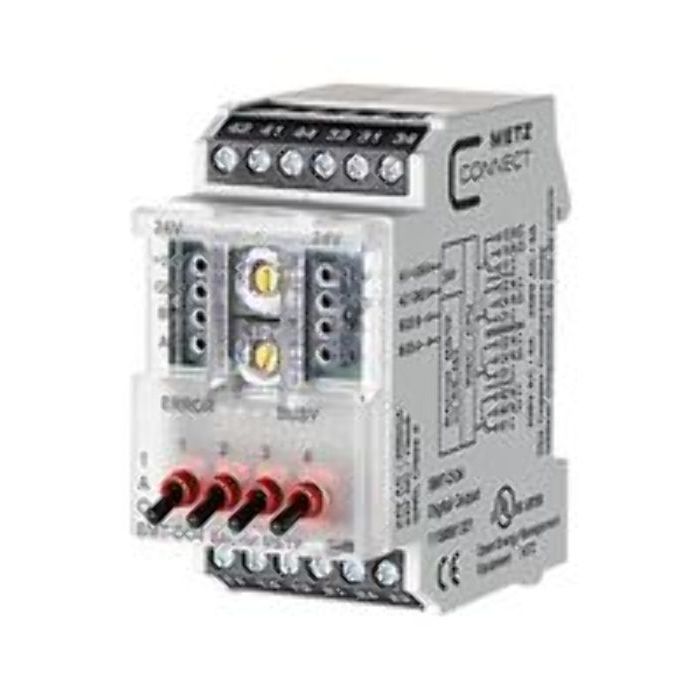

BMT-DO4
BACnet MS/TP, 4 IO Module
by
done_outline8888 in stock
addShow Locations
removeHide Locations
Four Digital Outputs, Mount In Any Position, RS-485 Cable.
Features
Designed For Local Switching Operations
Suitable To Operate Electrical Components Such As Motors, Contactors, Lamps, Sun-Blinds, etc.
It Is Recommended To Protect The Relay Contacts Additionally By A RC-Element Or High Inductive Loads
The Module Is Provided With A Manual Control Facility For Manual Switching Of The Relays
The Outputs Can Be Operated By Standard Objects Via A BACnet-Client
Addressing Of The Module And Baud Rate Setting Are Done With The Two Address Switches (x1 / x10) On The Front
Possible Settings Are Addresses 00 To F9 And Baud Rates 9600 Bd, 19200 Bd, 38400 Bd, 57600, 76800 Bd And 115200 Bd
