A/TT1K-RA-18-4-4X

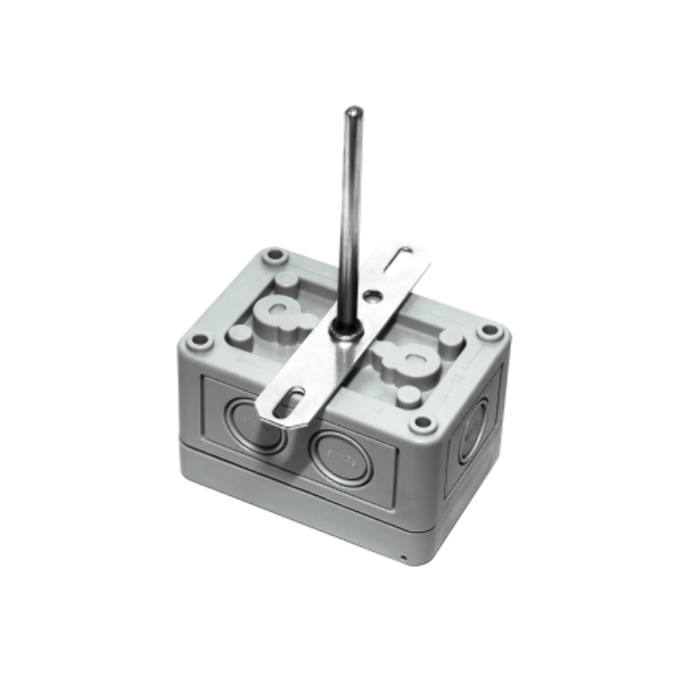

Rigid Averaging Temperature Transmitter
by
done_outline8888 in stock
addShow Locations
removeHide Locations
18 ft. Insertion, 1K ohm Platinum RTD, 4 To 20 mA Output Signal, NEMA 4X Enclosure, 8.5 To 32 VDC Supply Voltage.
Features
Roof Top Units, Air Handlers, Monitoring Supply/Discharge/Return/Mixed Air Temperatures, Data Centers, Hospitals Applications
Features A Two-Wire, 4 To 20 mA Loop Powered Output Signal With An Optional 3-Wire Voltage Output Signal Available
All Transmitters Include Zero And Span Adjustments For Field Calibration And Are Calibrated Using NIST Certified Calibration Equipment
ACI Recommends The Use Of An 18 To 22 AWG Shielded Cable For All Temperature Transmitter Installations To Help Eliminate The Possibility Of Noise Being Introduced Onto The Signal Lines
Designed To Be Installed In Small To Medium Size Ducts To Give You A Better Average Compared To That Of A Single Point Sensor
