B215HT073+TFRX24-MFT
HTCCV Assembly, 2 Way, 1/2 in. NPT
by
done_outline8888 in stock
addShow Locations
removeHide Locations

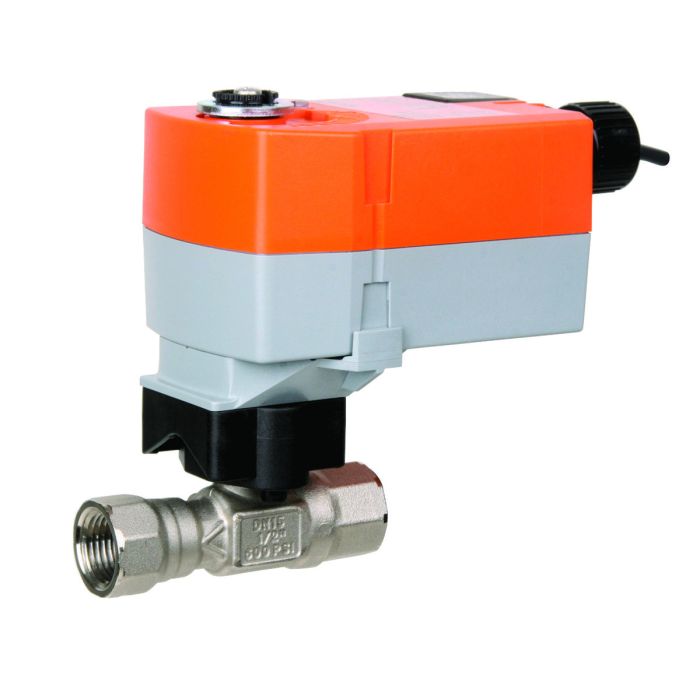

High Temperature Characterized Control Valve, Nickel Plated Brass Body, Stainless Steel Ball Stem, 0.73 Cv, Direct Coupled Actuator, 22 in-lb, Modulating, Spring Return, 24 VAC, Multi-Function Technology.
Features
Perfect Solution For Low Pressure Steam
Elongated, Characterizing Disc Reduces Turbulent Flow And Improves Efficiency Of The System
Maintenance Free-No Repacking Required After Being In Service For An Extended Period Of Time
Ball Valve Design Offers Self-Cleaning And Zero Leakage
Designed With MFT Functionality
Technical Details
Service
High Temperature Hot Water/Low Pressure Steam, Up To 60% Glycol
Flow Characteristic
A-Port Equal Percentage
Operating Conditions
60 F To 266 F (16 C To 130 C)
Close-Off Pressure
200 psi
Power Consumption
2.5 W Running, 1 W Holding
Operating Conditions
-22 F To 122 F (-30 C To 50 C)
Electrical Connection
3, 10, Or 16 ft. 18 GA Appliance Cables With 1/2 in. Conduit Connector
Housing
NEMA 2, IP42, UL Enclosure Type 2
