B215HT116+TFRB120

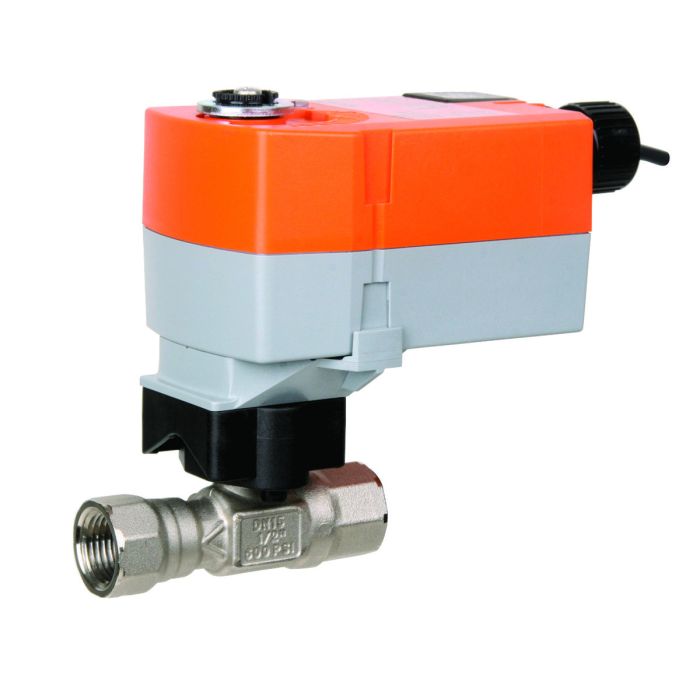

HTCCV Assembly, 2 Way, 1/2 in. NPT
by
done_outline8888 in stock
addShow Locations
removeHide Locations
High Temperature Characterized Control Valve, Nickel Plated Brass Body, Stainless Steel Ball Stem, 1.16 Cv, Direct Coupled Actuator, 22 in-lb, On/Off, Spring Return, 100 To 240 VAC.
Features
Perfect Solution For Low Pressure Steam
Elongated, Characterizing Disc Reduces Turbulent Flow And Improves Efficiency Of The System
Maintenance Free-No Repacking Required After Being In Service For An Extended Period Of Time
Ball Valve Design Offers Self-Cleaning And Zero Leakage
Technical Details
Service
High Temperature Hot Water/Low Pressure Steam, Up To 60% Glycol
Flow Characteristic
A-Port Equal Percentage
Operating Conditions
60 F To 266 F (16 C To 130 C)
Close-Off Pressure
200 psi
Power Consumption
2.5 W Running, 1.3 W Holding
Operating Conditions
-22 F To 122 F (-30 C To 50 C)
Electrical Connection
3 ft. 18 GA Plenum Cable With 1/2 in. Conduit Connector
Housing
NEMA 2, IP42, UL Enclosure Type 2
