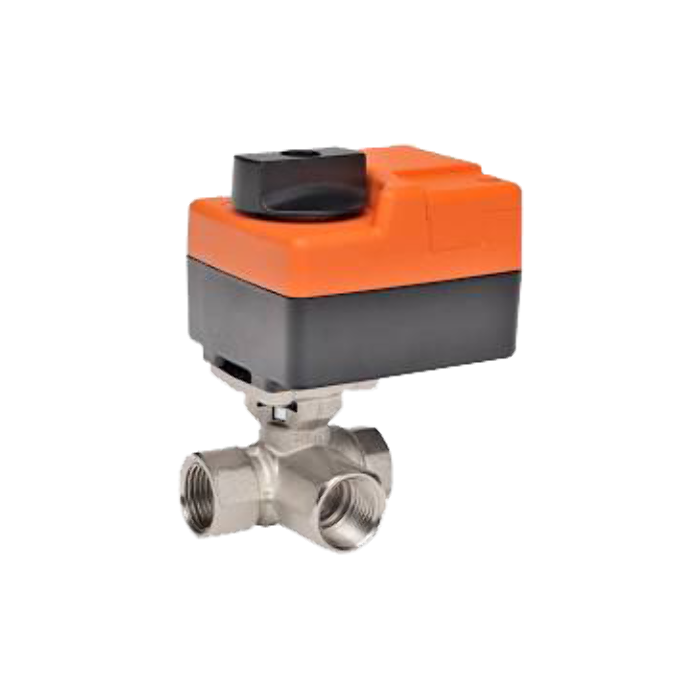

B316B+TR24-SR-T US
CCV Assembly 3 Way, 1/2 in. NPT, 16 Cv
by
done_outline8888 in stock
addShow Locations
removeHide Locations
Characterized Control Valve, Forged Brass, Nickel Plated Brass Body, Chrome Plated Brass Ball, Nickel Plated Brass Stem, Valve Actuator, Modulating, Non-Spring Return, 24 VAC, For 2 To 10 VDC Or 4 To 20 mA Control Signal.
Features
Typically Used In Air Handling Units On Heating Or Cooling Coils, And Fan Coil Unit Heating Or Cooling Coils
Suitable For Use In Hydronic Systems With Variable Or Constant Flow
Technical Details
Service
Chilled, Hot Water, Up To 60% Glycol
Flow Characteristic
A-Port Equal Percentage, B-Port Modified Linear For Constant Flow
Operating Conditions
0 F To 250 F (-18 C To 120 C)
Close-Off Pressure
200 psi
Power Consumption
0.5 W Running
Operating Conditions
-22 F To 122 F (-30 C To 50 C)
Electrical Connection
Screw Terminal
Housing
NEMA Type 1, IP40
