F665VIC+AFBUP-X1

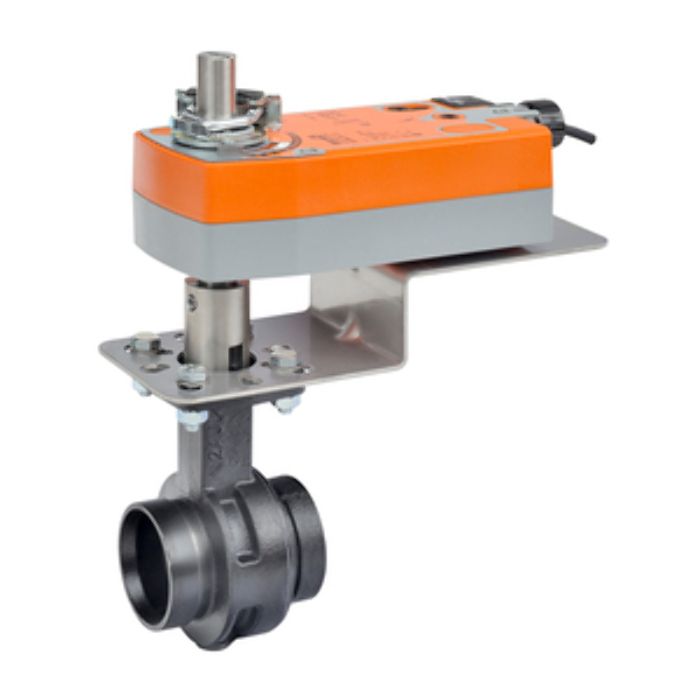

Butterfly Valve Assembly 2 Way 2 1/2 in.
by
done_outline8888 in stock
addShow Locations
removeHide Locations
Grooved, 90 Degree At 260 Cv, Ductile Iron Body, Reinforced Teflon Seat, Electroless Nickel Coated Ductile Iron Disc, Direct Coupled Actuator, 180 in-lb, On/Off, Spring Return, 24 To 240 VAC.
Features
Resilient Seat, Grooved And High Performance Butterfly Valves Meet A Wide Range Of Applications
Innovative Seat And Disc Design Provides Zero Percent Leakage Capability At Each Valves Rated Temperature/Pressure While Maintaining A Low Seating Torque
Technical Details
Service
Chilled, Hot Water, Up To 60% Glycol
Flow Characteristic
Modified Equal Percentage
Operating Conditions
-22 F To 250 F (-30 C To 120 C)
Power Consumption
7 W Running, 3.5 W Holding
Operating Conditions
-22 F To 122 F (-30 C To 50 C)
Electrical Connection
3 ft. 18 GA Appliance Cable, With 1/2 in. Conduit Connector
Housing
NEMA 2, IP54, UL Enclosure Type 2
