F680HD+GKRX24-MFT N4H

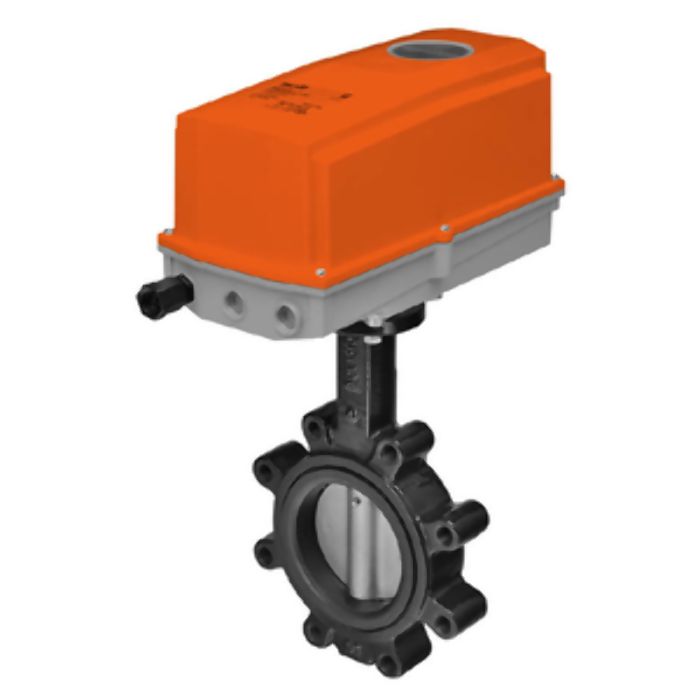

Butterfly Valve Assembly, 2 Way, 3 in.
by
done_outline8888 in stock
addShow Locations
removeHide Locations
Flanged, 90 Degree @ 302 Cv, Ductile Iron Body, Resilient Seat, Stainless Steel Disc, Direct Coupled, Electronic Fail Safe, 360 in-lb Torque Rating, 24 VAC, 21 VA, Modulating, 0 To 10 VDC, 4 To 20 mA.
Features
Resilient Seat, Grooved And High Performance Butterfly Valves Meet A Wide Range Of Applications
Innovative Seat And Disc Design Provides Zero Percent Leakage Capability At Each Valves Rated Temperature/Pressure While Maintaining A Low Seating Torque
Stainless Steel Disc And Shaft Are Standard For Superior Durability And Long Lasting Operation
Designed With MFT Functionality
Technical Details
Service
Chilled, Hot Water, Up To 60% Glycol
Flow Characteristic
Modified Equal Percentage
Operating Conditions
-22 F To 250 F (-30 C To 120 C)
Close-Off Pressure
200 psi
Power Consumption
12 W Running, 3 W Holding
Operating Conditions
-22 F To 122 F (-30 C To 50 C)
Electrical Connection
3 ft. 18 GA Plenum Cable, With 1/2 in. Conduit Connector
Housing
IP66, NEMA 4X, UL Enclosure Type 4X
