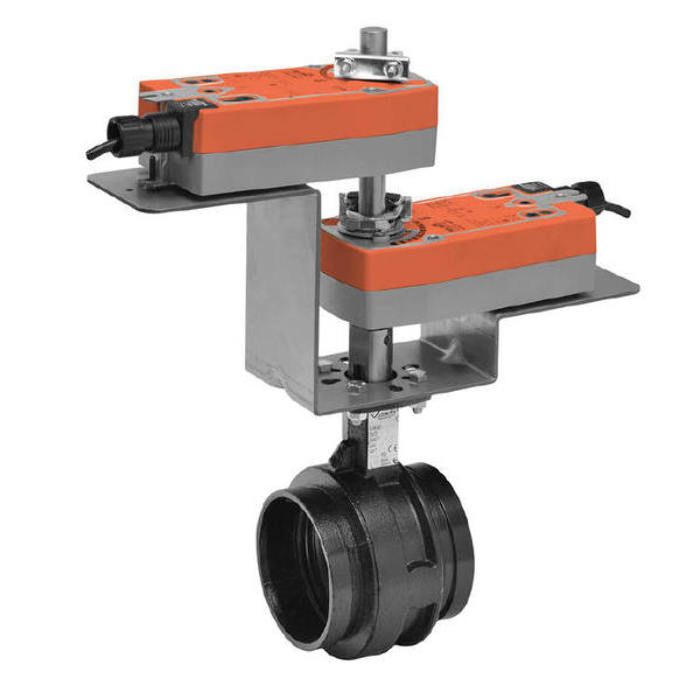

F680VIC+2AFX24-MFT-X1
Butterfly Valve Assembly 2 Way, 3 in.
by
done_outline8888 in stock
addShow Locations
removeHide Locations
Grooved, 90 Degree At 440 Cv, Ductile Iron Body, Reinforced Teflon Seat, Electroless Nickel Coated Ductile Iron Disc, Direct Coupled Tandem Actuator, 180 in-lb, Modulating, Spring Return, 24 VAC, Multi-Function Technology.
Features
Designed With MFT Functionality
Technical Details
Service
Chilled, Hot Water, Up To 60% Glycol
Flow Characteristic
Modified Equal Percentage
Operating Conditions
-30 F To 250 F (-34 C To 120 C)
Close-Off Pressure
200 psi
Power Consumption
7.5 W Running, 3 W Holding
Operating Conditions
-22 F To 122 F (-30 C To 50 C)
Electrical Connection
3 ft. 10 ft. Or 16 ft. 18 GA Appliance Or Plenum Cables, With Or Without 1/2 in. Conduit Connector
Housing
NEMA 2, IP54, UL Enclosure Type 2
