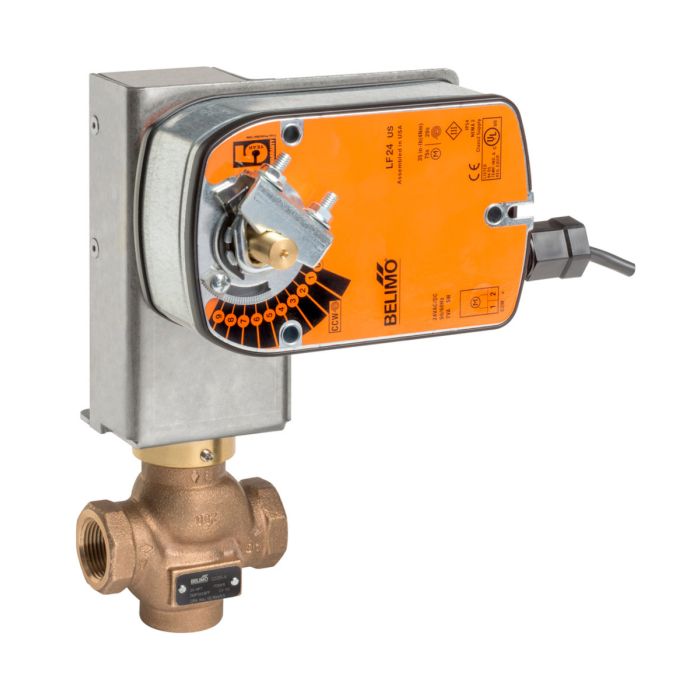

G220B-J+LF24 US

Globe Valve Assembly, 2 Way, 3/4 in.

done_outline8888 in stock

addShow Locations removeHide Locations

NPT, 5.5 Cv, Bronze Body, Bronze Seat, Stainless Steel Stem, Direct Coupled Actuator, 35 in-lb, On/Off, Spring Return, 24 VAC/DC.

Features

Greater Force And Flexibility

For Use With Water And Low To High Pressure Steam Control, 15-100 psi Inlet

New Soft Seat Design Providing ANSI Class VI Leakage Rating

Technical Details

Service

Chilled Or Hot Water, Up To 60% Glycol, Steam

Flow Characteristic

Modified Equal Percentage

Operating Conditions

20 F To 280 F (-7 C To 138 C)

Power Consumption

5 W Running, 2.5 W Holding

Operating Conditions

-22 F To 122 F (-30 C To 50 C)

Electrical Connections

3 ft. 18 GA Appliance Cable With 1/2 in. Conduit Connector

Housing

NEMA 2, IP54
