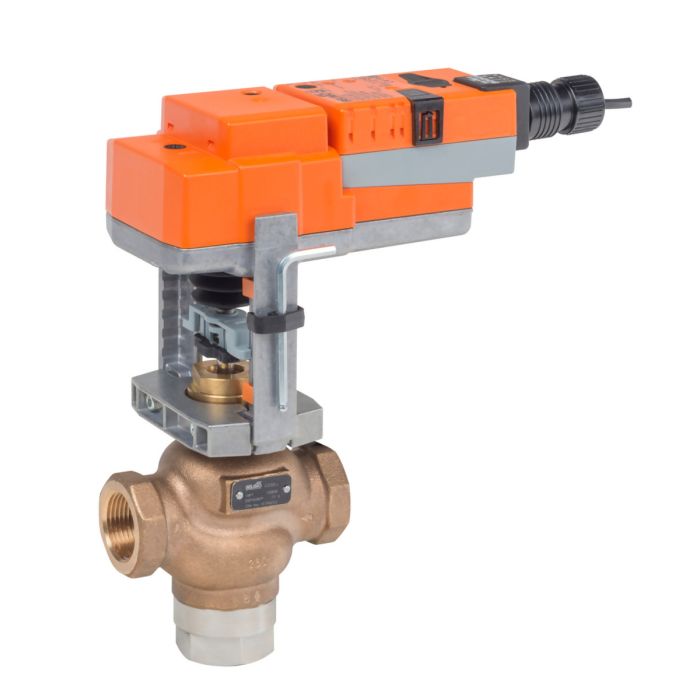

G315B-J+SVB24-3
Globe Valve Assembly, 3 Way, 1/2 in.
by
done_outline8888 in stock
addShow Locations
removeHide Locations
NPT, 4.4 Cv, Bronze Body And Seat, Stainless Steel Stem, Direct Coupled Actuator, 340 ft.-lb Linear Force, On/Off, Floating Point, Non-Spring Return, 24 VAC.
Features
This Valve Is Typically Used In Air Handling Units On Heating Or Cooling Coils, And Fan Coil Unit Heating Or Cooling Coils
Suitable For Use In Hydronic Systems With Constant Or Variable Flow
Technical Details
Service
Chilled, Hot Water, Up To 60% Glycol
Flow Characteristic
Modified Equal Percentage, Linear B To AB
Operating Conditions
20 F To 280 F (-7 C To 138 C)
Power Consumption
2 W Running, 1.5 W Holding
Operating Conditions
-22 F To 122 F (-30 C To 50 C)
Electrical Connection
3 ft. 18 GA Plenum Rated Cable With 1/2 in. Conduit Connector Protected NEMA 2
Housing
NEMA 2, IP54, UL Enclosure Type 2
