G320B-K+SVKX24-3

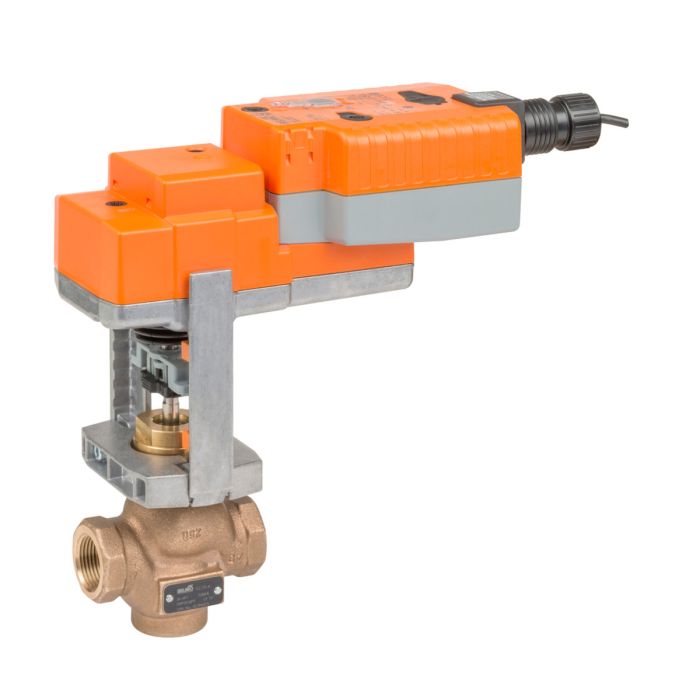

Globe Valve Assembly, 3 Way, 3/4 in.

done_outline8888 in stock

addShow Locations removeHide Locations

NPT, 6.75 Cv, Bronze Body And Seat, Stainless Steel Stem, Direct Coupled Actuator, 340 ft.-lb, On/Off, Floating Point, Electronic Fail-Safe, 24 VAC.

Features

This Valve Is Typically Used In Air Handling Units On Heating Or Cooling Coils, And Fan Coil Unit Heating Or Cooling Coils

Suitable For Use In Hydronic Systems With Configurable Or Variable Flow

Can Be Used For Both Mixing And Diverting Depending On The Piping Configuration

Technical Details

Service

Chilled, Hot Water, Up To 60% Glycol

Flow Characteristic

Modified Equal Percentage, Linear B-AB

Operating Conditions

20 F To 280 F (-7 C To 138 C)

Power Consumption

3 W Running, 2 W Holding

Operating Conditions

-22 F To 122 F (-30 C To 50 C)

Electrical Connection

3 ft. 18 GA Plenum Cable With 1/2 in. Conduit Connector

Housing

NEMA 2, IP54, UL Enclosure Type 2
