G350B-N+AFB24-SR-X1

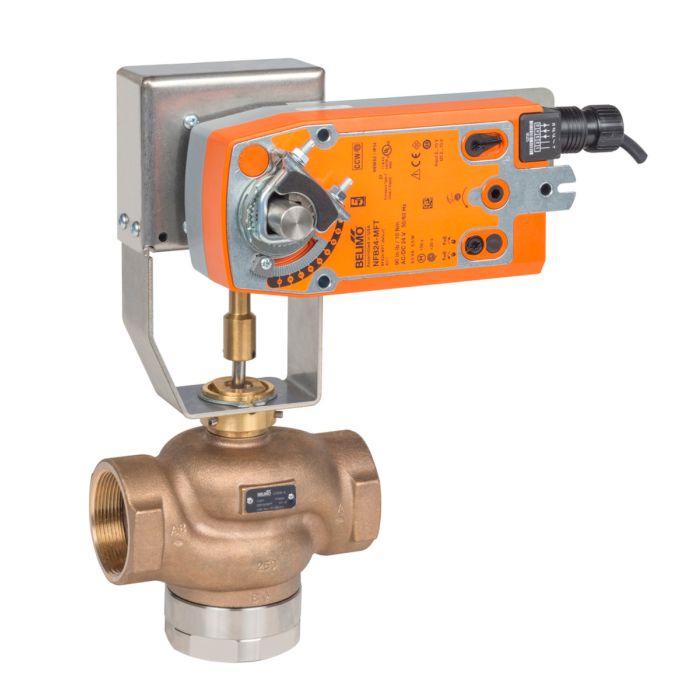

Globe Valve Assembly, 3 Way, 2 in.
by
done_outline8888 in stock
addShow Locations
removeHide Locations
NPT, 40 Cv, Bronze Body, Bronze Seat, Stainless Steel Stem, Direct Coupled Actuator, 180 in-lb, Modulating, Spring Return, 24 VAC/DC, For 2 To 10 VDC Or 4 To 20 mA Control Signal.
Features
Greater Force And Flexibility
For Use With Water And Low To High Pressure Steam Control, 15-100 psi Inlet
New Soft Seat Design Providing ANSI Class VI Leakage Rating
Technical Details
Service
Chilled Or Hot Water, Up To 60% Glycol
Flow Characteristic
Modified Equal Percentage, Linear B To AB
Operating Conditions
20 F To 280 F (-7 C To 138 C)
Power Consumption
5.5 W Running, 3 W Holding
Operating Conditions
-22 F To 122 F (-30 C To 50 C)
Electrical Connections
3 ft. 18 GA Appliance Cable With 1/2 in. Conduit Connector
Housing
NEMA 2, IP54, UL Enclosure Type 2
