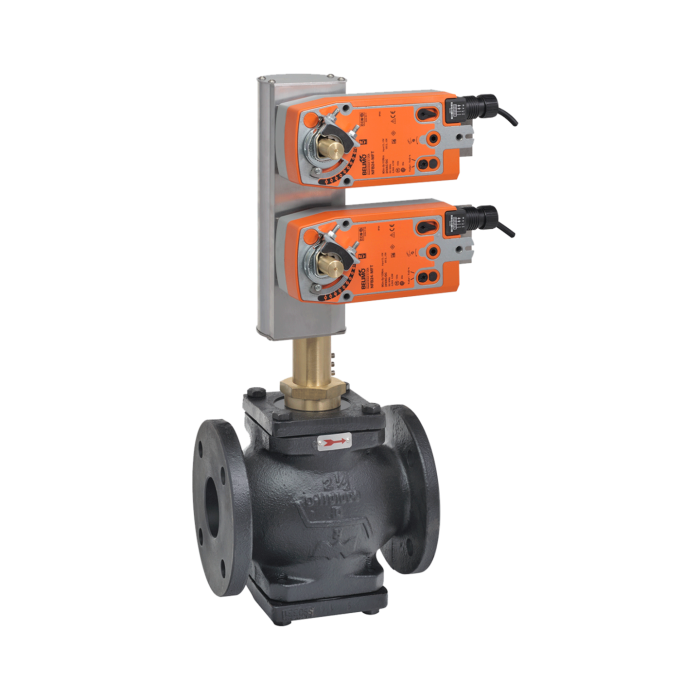

Flanged, 190 Cv, Cast Iron Body, Stainless Steel Seat And Stem, Direct Coupled Tandem Actuator, 180 in-lb, Modulating, Spring Return, 24 VAC, Multi-Function Technology.
Features
Greater Force And Flexibility
For Use With Water And Low To High Pressure Steam Control, 15-100 psi Inlet
New Soft Seat Design Providing ANSI Class VI Leakage Rating
Designed With MFT Functionality
Technical Details
Service
Chilled, Hot Water, Up To 60% Glycol
Flow Characteristic
Linear
Operating Conditions
-20 F To 350 F (-30 C To 176 C)
Power Consumption
7.5 W Running, 3 W Holding
Operating Conditions
-22 F To 122 F (-30 C To 50 C)
Electrical Connections
18 GA Appliance Rated Cable With 1/2 in. Conduit Connector Protected NEMA 2, 3 ft. 10 ft. And 16 ft.
