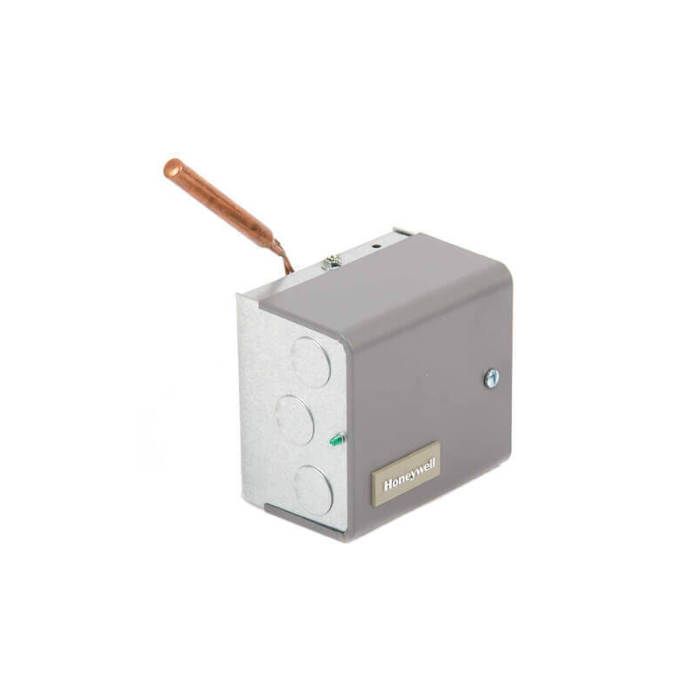

L4081B1096/U
High Limit Aquastat Controller
by
done_outline8888 in stock
addShow Locations
removeHide Locations
High Limit And Circulator Application, 10 F Fixed, 3 in. Insulation Depth, SPST Switching Action, Horizontal Mounting.
Features
An Immersion Type Liquid-Filled Sensing Element Actuates Two Snap Switches
One Switch Operates As A High Limit Control
The Other Switch Operates As A Low Limit And/Or Circulator Control, Depending On The Model
Controller May Be Mounted In Any Positioning And Needs No Leveling
Separate, Easy-To-Read, Calibrated Dial And Set Point Adjustments For Each Switch
All Adjustments Accessible Inside Front Cover
Push-In Terminals For Quick Connecting
Single Sensing Element For Easy Installation
Two SPST Snap Switches (One SPST And One SPDT In L6081A,C) Act Independently At Respective Temperature Settings
