VR4N7UPBH/M

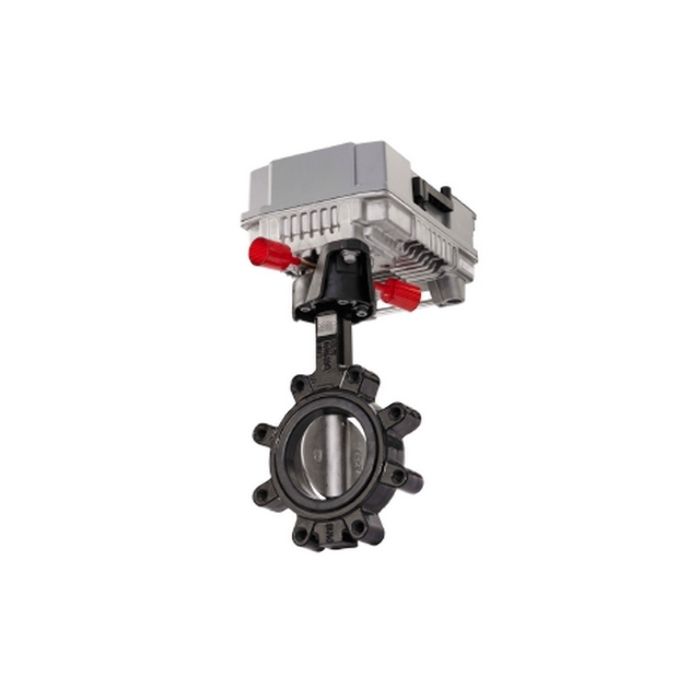

Butterfly Valve Assembly, 3 Way, 10 in.
by
done_outline8888 in stock
addShow Locations
removeHide Locations
Lugged Connection Type, 2047 Cv At 60 Degrees Stroke, 5340 Cv At 90 Degrees Stroke, Polyester Powder Coated Ductile Iron ASTM A536 Body, EPDM Seat, MBP7U8BH/U Modulating 0 To 10 VDC, Fail-In-Place, Actuator Included
Features
Mixing Or Diverting Control
Standard Cast-Iron Pipe T Included
Multiple Port Configurations Available To Fit Different Applications
Manual Override
Technical Details
Service
For Use With Hot, Chilled Or Condensing Water, Up To 60% Glycol
Flow Characteristic
Modified Linear
Operating Temperature
-22 F To 250 F (-30 C To 121 C)
Close-Off Pressure
200 psi
