VFF6LV1Y2B/M

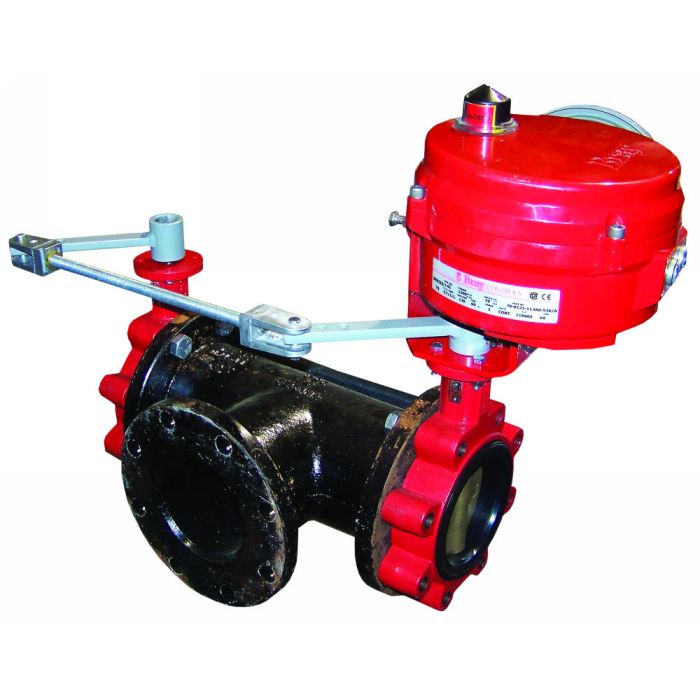

Butterfly Valve, 3 Way, 6 in.
by
done_outline8888 in stock
addShow Locations
removeHide Locations
567 Cv At 60 Degrees And 1850 Cv At 90 Degrees, Flanged, Polyester-Coated Cast Iron ASTM A26 Class B Body, 416 Stainless Steel Stem, Peroxide-Cured EPDM Resilient Seat
Features
Bi-Directional Flow
Non-Declutchable, Override Hand Wheel Standard With NEMA 4 Actuators
Extended Neck For 2 in Of Pipe Installation
Nylon 11-Coated, Cast Iron Disks For Corrosion Resistance, Reduced Friction And Use Of Lower-Torque Actuators With Larger Valves Body Sizes
Cast Iron Valve Body Polyester-Coated For Weather, Chemical, Ultra-Violet, Abrasion, And Impact Protection
Stainless Steel Valve Stem With Close-Tolerance Internal Double-D Disk Connection With No Points For Corrosion Access
Bubble-Tight Seat Leakage At Rated Close-Off
ISO5211 Actuator Mounting Flange
Anti-Condensate Heaters Standard With NEMA 4X And NEMA 4 Actuators
Declutchable Override Hand Wheel Standard With NEMA 4X Actuators
Technical Details
Service
Chilled Or Hot Water With Up To 50% Glycol
Operating Conditions
-40 F To 250 F (-40 C To 121 C)
Close-Off Pressure
250 psi
Flow Characteristic
Modified Equal Percent
