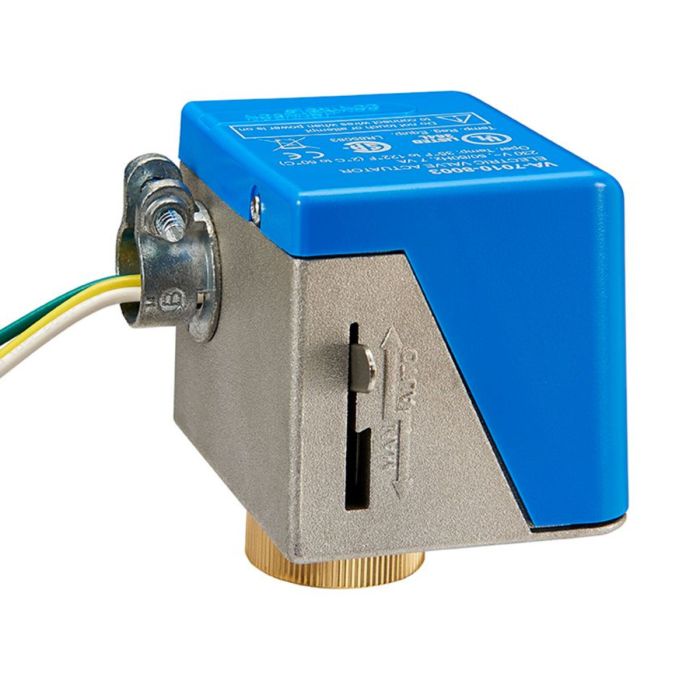

Valve Actuator, 20.2 lb. Minimum Force
done_outline8888 in stock
addShow Locations removeHide Locations
24 VAC, 7 VA, On/Off Control.


Low Voltage Or Line Voltage Models Provide Application Flexibility
AC Stall Type Motor Ensures Quiet Operation
Manual Lever Allows Manual Position Mode For Servicing
Flat Profile Design With Small Side Clearance Provides Mounting Close To Flat Surfaces And Saves Space
Actuator Can Be Mounted After The Valve Body Is Installed, Simplifying Installation In Confined Spaces While Allowing Application Flexibility
Actuator Can Be Rotated After Mounting, Providing Easier Wiring By Locating The Wiring Conduit Entry In Any Direction

Technical Details

Power Consumption
7 VA
Operating Conditions
35 F To 122 F (2 C To 50 C)
Electrical Connections
18 AWG, 20 in. Long Wire Leads
NEMA 1, IP40
