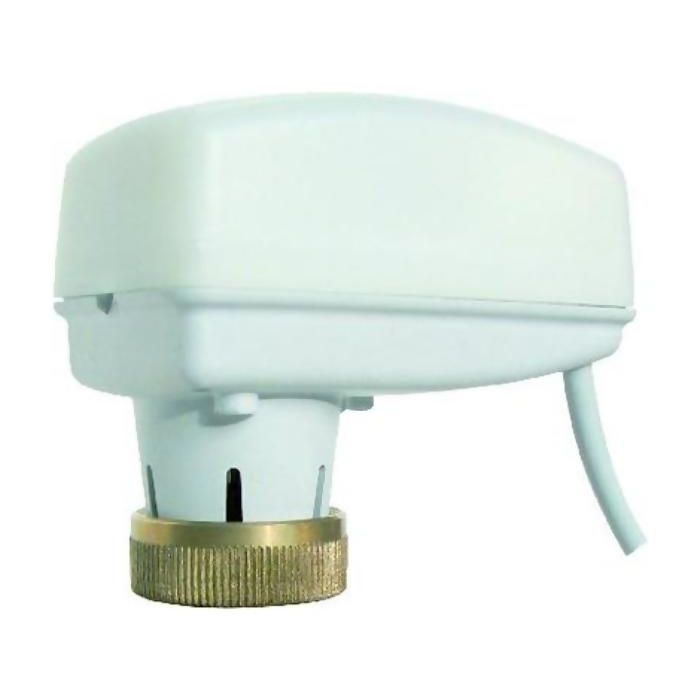

VA-7480-0312
Valve Actuator, 21.5 lb. Minimum Force
by
done_outline8888 in stock
addShow Locations
removeHide Locations
24 VAC, 2.5 VA, Floating Control.
Features
Auto-Commissioning Simplifies Installation, Since Models Require No Adjustments In The Field
Auto-Shutoff Actuator Motor Extends Actuator Life By Reducing Drive Time And Excessive Motor Wear
Actuator Can Be Mounted After The Valve Body Is Piped, Simplifying Installation And Providing Application Flexibility
Compact Design Allows For Installation In Confined Locations, Such As Fan Coil Applications
Operating Status LED Provides Direct, Visual Indication Of The Actuator Operating Status
Actuator Can Be Rotated After It Is Mounted On The Valve Body, Simplifying Installation By Allowing The Actuator Wiring Entry To Be Located In Any Direction
Technical Details
Power Consumption
2.5 VA
Operating Conditions
32 F To 122 F (0 C To 50 C)
Electrical Connections
18 AWG Cable, 118 in. Long
Housing
NEMA 2, IP43
