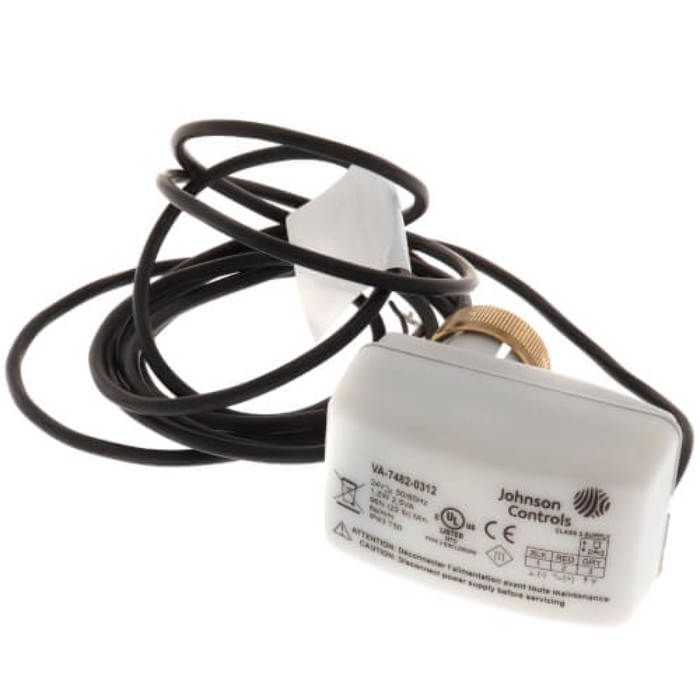

Valve Actuator, 21.5 lb. Minimum Force
done_outline8888 in stock
addShow Locations removeHide Locations
24 VAC/DC, 2.5 VA, 0 To 10 VDC, 2 To 10 VDC, 0 To 5 VDC, 5 To 10 VDC, 0 To 20 mA, Or 4 To 20 mA, Proportional Control.


Auto-Commissioning Simplifies Installation, Since Models Require No Adjustments In The Field
Auto-Shutoff Actuator Motor Extends Actuator Life By Reducing Drive Time And Excessive Motor Wear
Actuator Can Be Mounted After The Valve Body Is Piped, Simplifying Installation And Providing Application Flexibility
Compact Design Allows For Installation In Confined Locations, Such As Fan Coil Applications
Operating Status LED Provides Direct, Visual Indication Of The Actuator Operating Status
Actuator Can Be Rotated After It Is Mounted On The Valve Body, Simplifying Installation By Allowing The Actuator Wiring Entry To Be Located In Any Direction

Technical Details

Power Consumption
2.5 VA
Operating Conditions
32 F To 122 F (0 C To 50 C)
Electrical Connections
18 AWG Cable, 118 in. Long
NEMA 2, IP43
