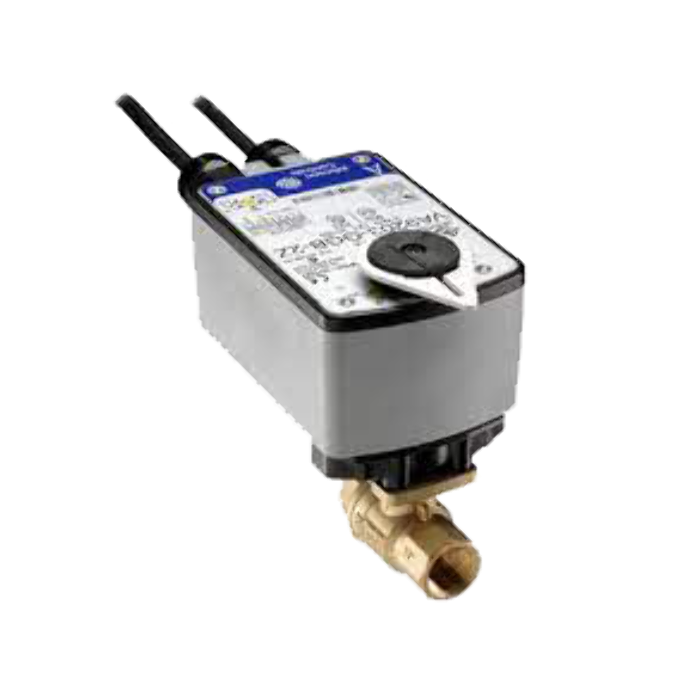

VG1241CL+923AGB
Ball Valve Assembly, 2 Way, 1 in.
by
done_outline8888 in stock
addShow Locations removeHide Locations
NPT, 7.4 Cv, Forged Brass Body, Chrome Plated Brass Ball, Nickel Plated Brass Blowout-Proof Stem, Direct Mount Electric Actuator, 27 lb-in. Non-Spring Return, 24 VAC, Floating.

Features

Maintenance-Free Design, Performs Without Failure In Excess Of 200,000 Full Stroke Cycles In Iron-Oxide Contaminated Water
500:1 Rangeability, Provides Accurate Control Under All Load Conditions
Chrome-Plated Brass Ball And Stem Assembly Standard, Handles Both Chilled Water And Hot Water Applications With A Fluid Temperature Range Of 23 F To 203 F

Technical Details

Service
Hot Water, Chilled Water, 50/50 Glycol Solution
Flow Characteristic
Equal Percentage
Operating Conditions
-22 F To 140 F (-30 C To 60 C)
Close-Off Pressure
200 psig
Power Consumption
5.1 VA Running, 2.8 VA Holding
Operating Conditions
-22 F To 140 F (-30 C To 60 C)
Electrical Connections
48 in. 18 AWG Appliance Cables With Integral 3/8 in. FMC Connectors
Housing
NEMA 2, IP54
Auxiliary Switch
1 x SPDT
