VG1245CN+9A4AGA

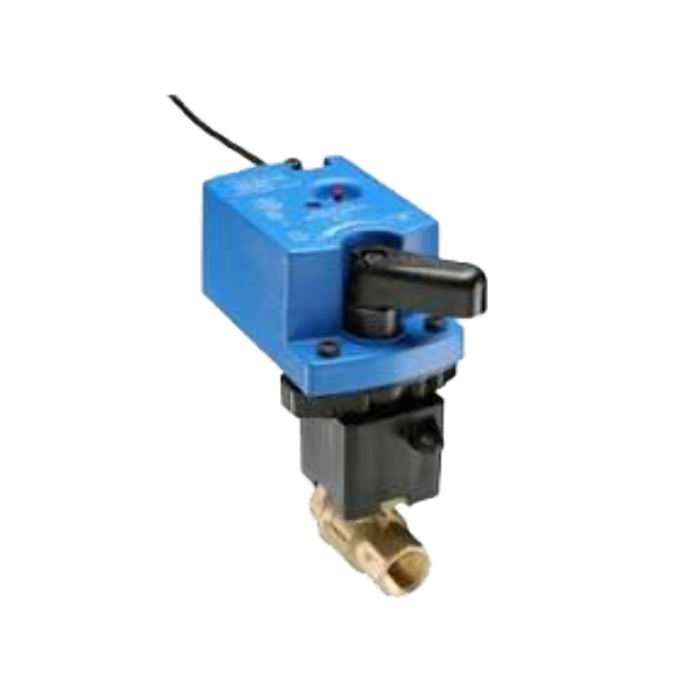

Ball Valve Assembly, 2 Way, 1 in.
by
done_outline8888 in stock
addShow Locations
removeHide Locations
NPT, 11.7 Cv, Forged Brass Body, Stainless Steel Ball And Blowout-Proof Stem, Direct Mount Electric Actuator, 35 lb-in. Non-Spring Return, 24 VAC, On/Off And/Or Floating Without Timeout.
Features
500:1 Rangeability, Provides Accurate Control Under All Load Conditions
Technical Details
Service
Hot Water, Chilled Water, 50/50 Glycol Solution, And 15 psig Saturated Steam For HVAC Systems
Flow Characteristic
Equal Percentage
Operating Conditions
-22 F To 140 F (-30 C To 60 C)
Close-Off Pressure
200 psig
Power Consumption
2.3 VA
Operating Conditions
-4 F To 140 F (-20 C To 60 C)
Electrical Connection
48 in. UL 444 Type CMP Plenum Rated Cable With 19 AWG Conductors And 0.25 in. Ferrule Ends And Connector For 3/8 in. Flexible Metal Conduit
Housing
NEMA 2, IP42
