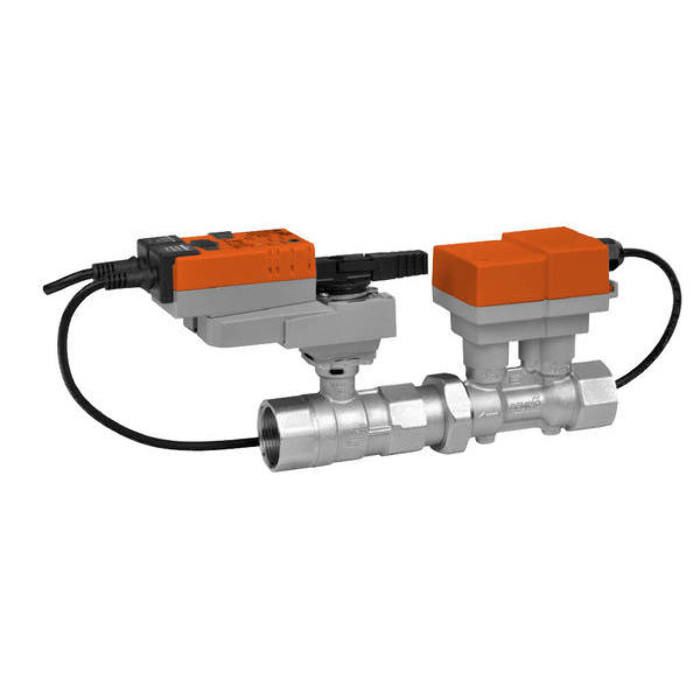

P2125SU-285+AKRX24-EP2
EPIV Assembly, 2 Way, 1-1/4 in. NPT
by
done_outline8888 in stock
addShow Locations
removeHide Locations
Electronic Pressure Independent Control Valve, 28.5 GPM, Nickel Plated Brass Body, Stainless Steel Ball And Stem, PTFE Seat, Direct Coupled Actuator, 180 in-lb, Modulating Control, 24 VAC/DC, For 2 To 10 VDC.
Features
Provides Constant Flow Regardless Of Pressure Variations In The System
Maximizes Chiller Delta T, Preventing Energizing Additional Chillers Due To Low Delta T
Simplified Valve Sizing And Selection, No Cv Calculations Required
Technical Details
Service
Chilled, Hot Water, Up To 60% Glycol Max
Flow Characteristic
Equal Percentage Or Linear
Operating Conditions
14 F To 250 F (-10 C To 120 C)
Close-Off Pressure
200 psi
Power Consumption
8 W
Operating Conditions
-22 F To 122 F (-30 C To 50 C)
Electrical Connection
3 ft. 18 GA Appliance Cable With 1/2 in. Conduit Connector
Housing
NEMA 2, IP54, UL Enclosure Type 2
