AT13A00T

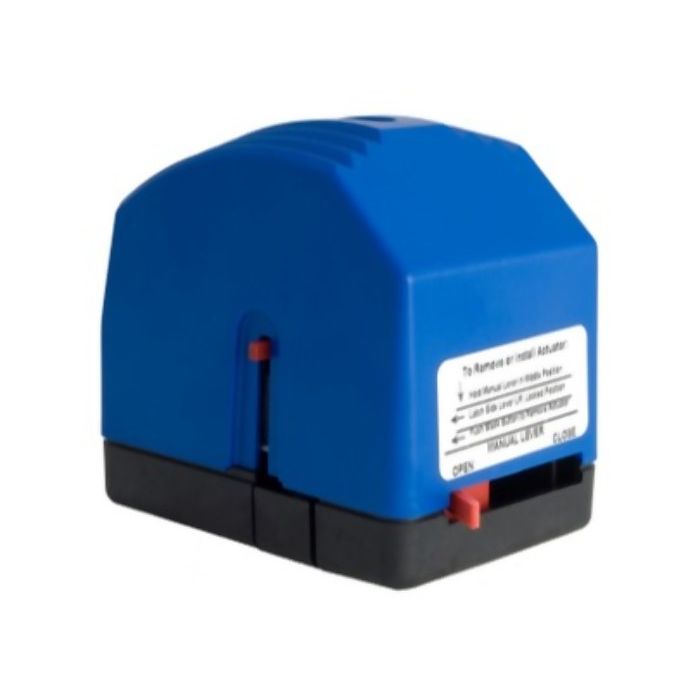

Erie PopTop Actuator
by
done_outline8888 in stock
addShow Locations
removeHide Locations
Spring Return Normally Closed, 24 VAC, 3 Wire Floating Control Signal, Includes Time-Out.
Features
Magnetic Clutch To Maximize The Life Of The Motor And Gear Train
Manual Operating Lever/Position Indicator Facilitates Field Setup
Easy To Use Lever Terminal Blocks
Can Be Installed After Valve Body Has Been Installed
Spring Return Will Return Actuator To Normal Position When The Power Is Lost For More Than Two Minutes
Technical Details
Power Consumption
1.9 VA
Operating Conditions
35 F To 125 F (2 C To 52 C)
Housing
NEMA 1, IP10
