255-01129

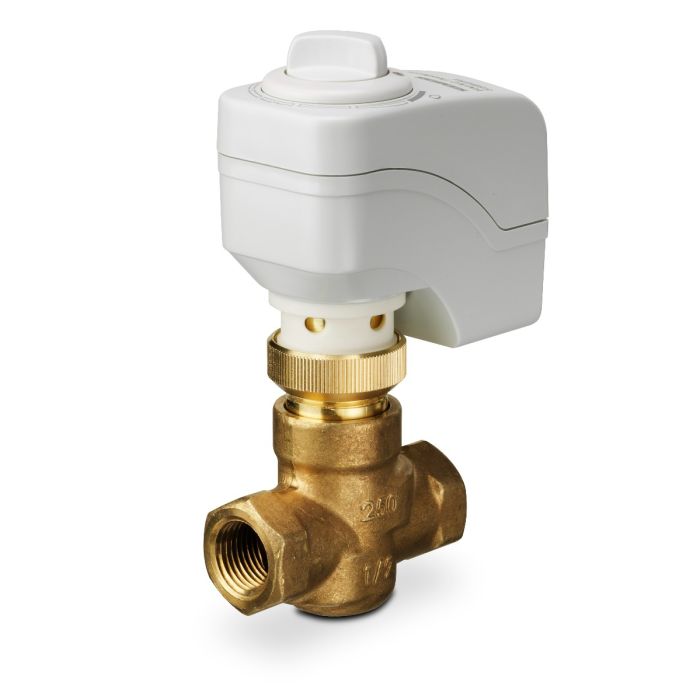

Globe Valve Assembly, 2 Way, 3/4 in.
by
done_outline8888 in stock
addShow Locations removeHide Locations
NPT, 6.3 Cv, Brass Trim, Direct Coupled Actuator, 200 N, Non-Spring Return, 24 VAC/DC, 2.0 VA, Normally Closed, Modulating Control, 0 To 10 VDC.

Features

ANSI Class 250

Technical Details

Service
Water, Glycol Solutions Up To 50%
Flow Characteristic
Modified Equal Percentage
Operating Conditions
35 F To 250 F (2 C To 120 C)
Close-Off Pressure
30 psi
Power Consumption
2.0 VA
Operating Conditions
34 F To 122 F (1 C To 50 C)
Electrical Connection
Terminal Block For Plenum Cable
Housing
NEMA 1
