276-03151

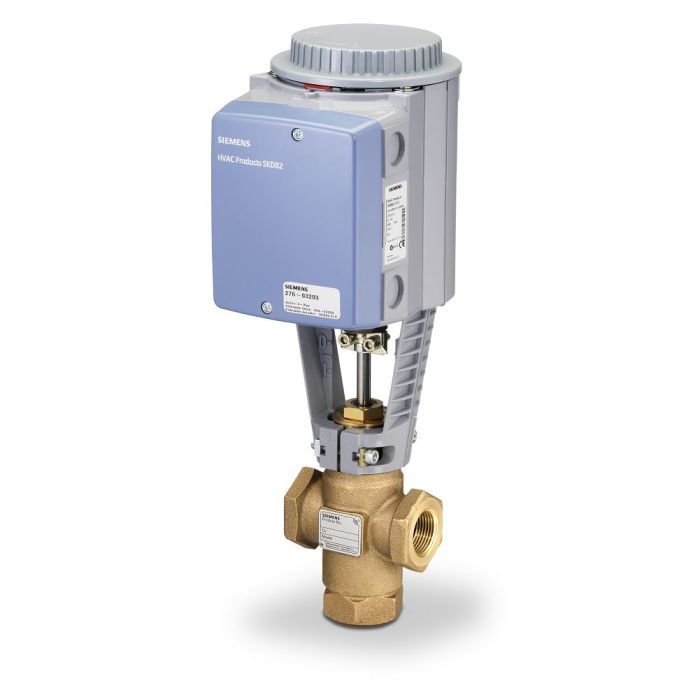

Globe Valve Assembly, 3 Way, 1-1/2 in.
by
done_outline8888 in stock
addShow Locations
removeHide Locations
NPT, 25 Cv, Stainless Steel Trim, Direct Coupled Actuator, Spring Return, 24 VAC, Three Position, Floating Control.
Features
ANSI Class 250
Technical Details
Service
Water, Glycol Solutions Up To 50%
Flow Characteristic
Equal Percentage (NC Port) And Linear Flow (NO Port)
Operating Conditions
20 F To 250 F (-7 C To 120 C)
Close-Off Pressure
73 psi
Power Consumption
18 VA
Operating Conditions
5 F To 130 F (-25 C To 150 C)
