291-03149

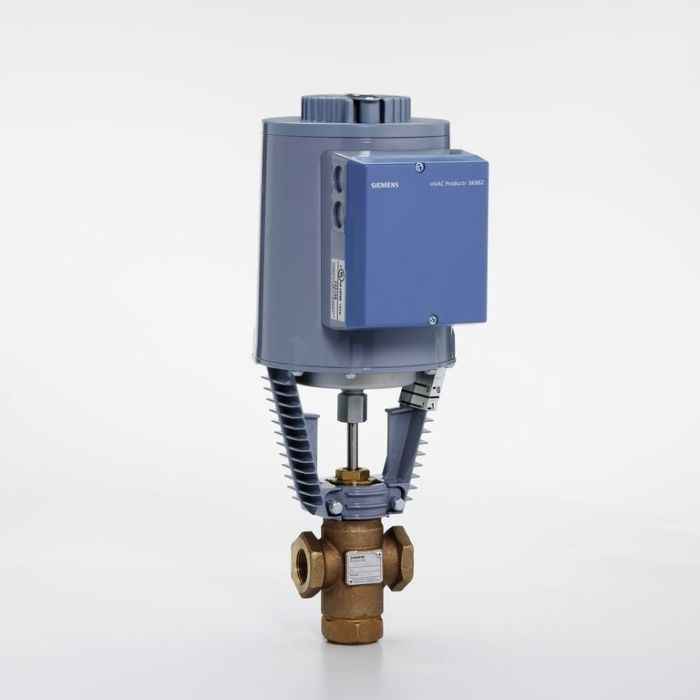

Globe Valve Assembly, 3 Way, 1 in.
by
done_outline8888 in stock
addShow Locations
removeHide Locations
NPT, 10 Cv, Stainless Steel Trim, Direct Coupled Actuator, 1000 N, Spring Return, 24 VAC, 17 VA, 3/4 in. Stroke, Modulating Control, 0 To 10 VDC Or 4 To 20 mA.
Features
ANSI Class 250
Technical Details
Service
Water, Glycol Solutions To 50%
Flow Characteristic
Equal Percentage (NC Port) And Linear Flow (NO Port)
Operating Conditions
20 F To 250 F (-7 C To 120 C)
Close-Off Pressure
250 psi
Power Consumption
17 VA
Operating Conditions
5 F To 130 F (-25 C To 150 C)
Housing
NEMA 1
