292-06177

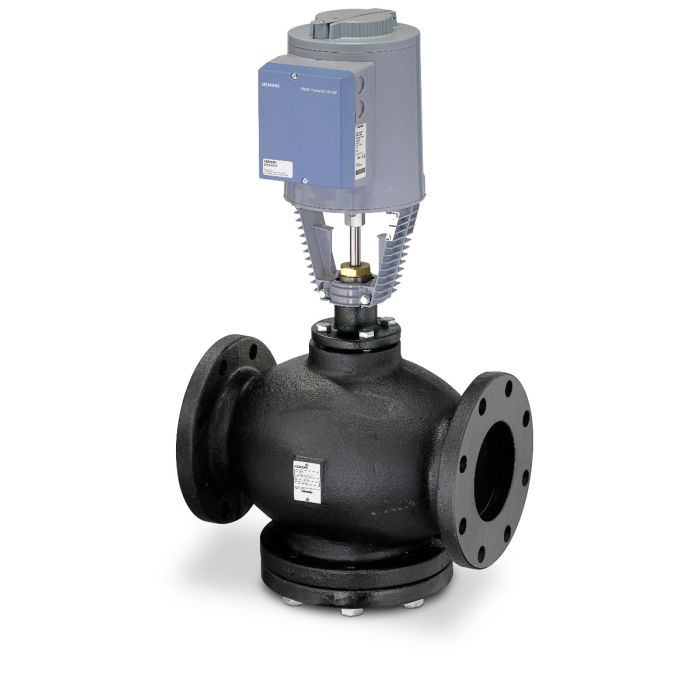

Globe Valve Assembly, 3 Way, 4 in.

done_outline8888 in stock

addShow Locations removeHide Locations

Flanged, 160 Cv, Stainless Steel Trim, Direct Coupled Actuator, 4400 N, Spring Return, 24 VAC, 24 VA, 1-1/2 in. Stroke, Floating Control, 3-Position.

Features

ANSI Class 250

Technical Details

Service

Water, Glycol Solutions To 50%

Flow Characteristic

Equal Percentage (NC port) And Linear (NO port) Flow Characteristics

Operating Conditions

20 F To 250 F (-7 C To 120 C)

Close-Off Pressure

39 psi

Power Consumption

24 VA

Operating Conditions

5 F To 130 F (-25 C To 150 C)

Housing

NEMA 1
