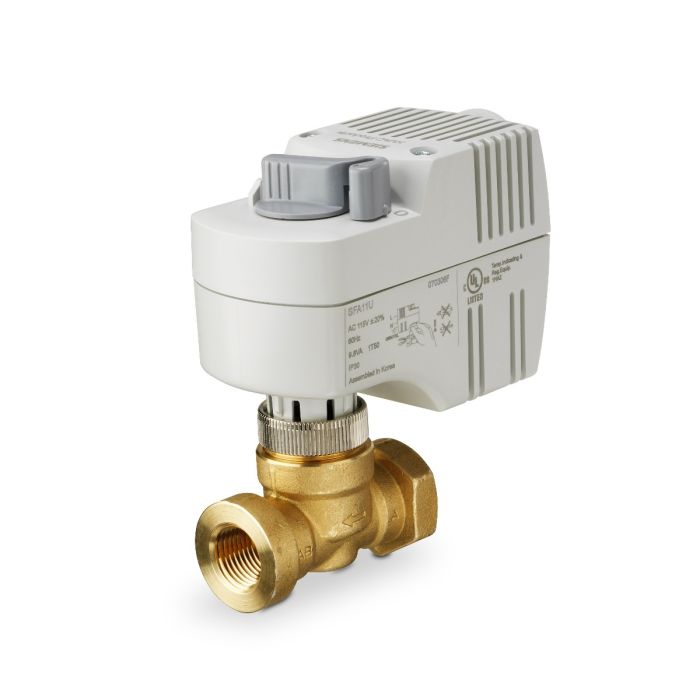

241-00210
Zone Valve, 2 Way, 1/2 in., NPT, 1 Cv
by
done_outline8888 in stock
addShow Locations
removeHide Locations
Brass Trim, Direct Coupled Actuator, 105 N, Spring Return, 120 VAC, 9.8 VA, Normally Open, Floating Control, 2-Position.
Features
Direct-Coupled Universal Bonnet
Direct-Coupled Installation Without Tools
Manual Override With 3 mm Hex Wrench
Visual Position Indication
Technical Details
Service
Hot Or Chilled Water
Flow Characteristic
Linear
Operating Conditions
34 F To 230 F (1 C To 110 C)
Close-Off Pressure
44 psi
Power Consumption
9.8 VA
Operating Conditions
41 F To 122 F (5 C To 50 C)
Housing
NEMA 1
