262-02043

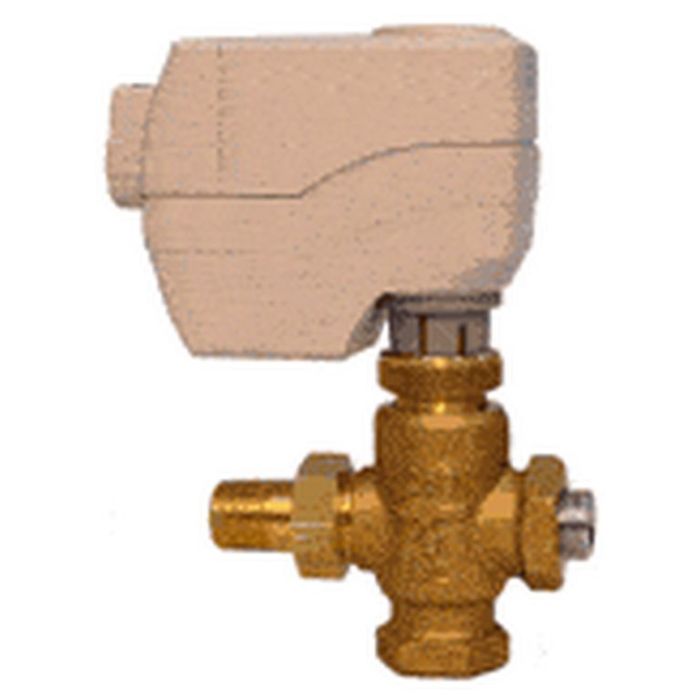

Globe Valve Assembly, 2 Way, 1/2 in.
by
done_outline8888 in stock
addShow Locations
removeHide Locations
NPT, 4 Cv, Brass Trim, Direct Coupled Actuator, Direct Coupled Actuator, 200 N, Spring Return, 24 VAC/DC, 2.0 VA, Normally Open, Modulating Control, 0 To 10 VDC.
Features
ANSI Leakage Class IV (0.01% Of Cv)
AF x UM Connection
Technical Details
Service
Water, Water-Glycol Solutions To 50%, Low Pressure Steam <15 psi
Flow Characteristic
Modified Equal Percentage
Operating Conditions
35 F To 250 F (2 C To 120 C)
Close-Off Pressure
65 psi
Power Consumption
2.0 VA
Operating Conditions
34 F To 122 F (1 C To 50 C)
Electrical Connection
Terminal Block For Plenum Cable
Housing
NEMA 1
