267-03024

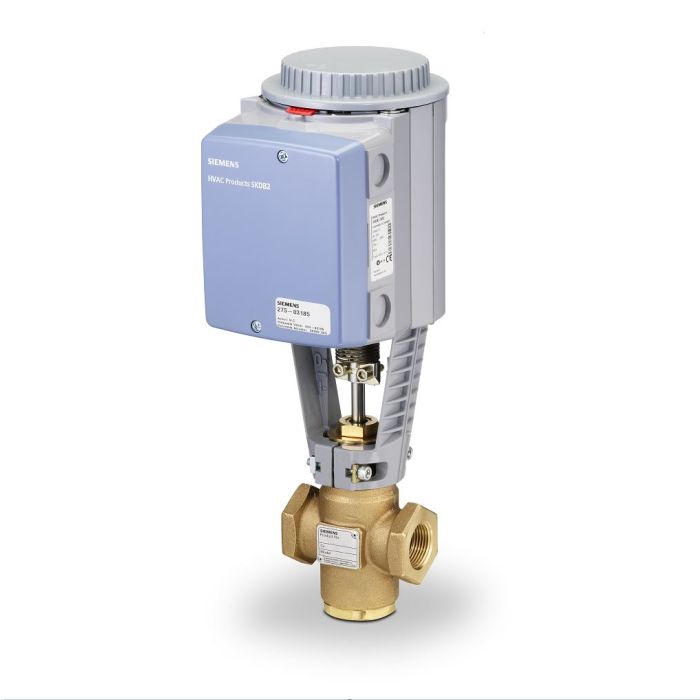

Globe Valve Assembly, 2 Way, 1-1/4 in.
by
done_outline8888 in stock
addShow Locations
removeHide Locations
NPT, 16 Cv, Stainless Steel Trim, Direct Coupled Actuator, 250 in-lb, Non-Spring Return, Normally Closed, 24 VAC, 17 VA, Modulating Control, 0 To 10 VDC Or 4 To 20 mA.
Technical Details
Service
Water, Steam, 50% Water-Glycol Solutions
Flow Characteristic
Linear
Operating Conditions
20 F To 250 F (-7 C To 120 C)
Close-Off Pressure
117 psi
Power Consumption
17 VA
Operating Conditions
5 F To 130 F (-15 C To 55 C)
Electrical Connections
1/2 in. NPSM Conduit Opening
Housing
NEMA 1
