299-03024

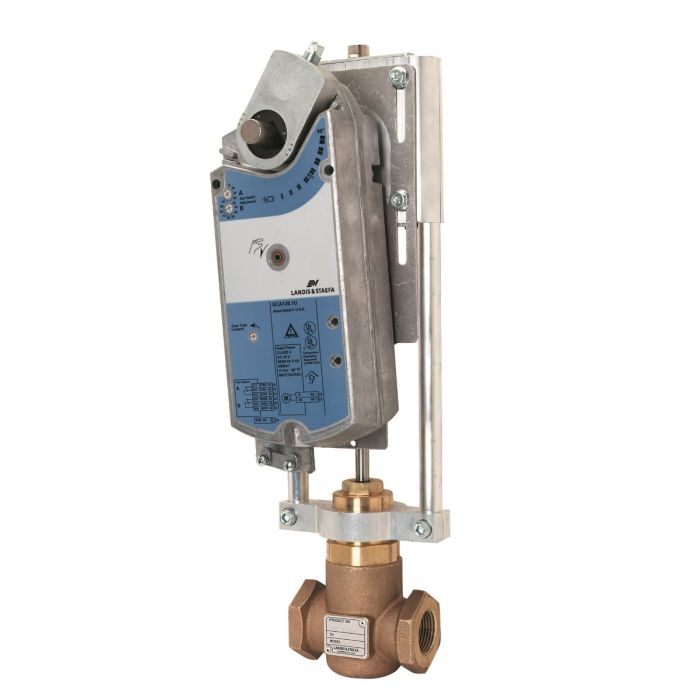

Globe Valve Assembly, 2 Way, 1-1/4 in.
by
done_outline8888 in stock
addShow Locations
removeHide Locations
NPT, 16 Cv, Stainless Steel Trim, Direct Coupled Rack And Pinion Actuator, Spring Return, 24 VAC, 8 VA, Normally Closed, Floating Control, 2-Position.
Features
ANSI Class 250
Technical Details
Service
Saturated Steam, Water, Glycol Solutions To 50%
Flow Characteristic
Linear
Operating Conditions
20 F To 250 F (-7 C To 120 C)
Close-Off Pressure
100 psi
Power Consumption
8 VA Running, 3 VA Holding
Operating Conditions
-25 F To 130 F (-32 C To 55 C)
Electrical Connection
3 ft. 18 AWG Cable
Housing
NEMA 2
