VP519C1006/U

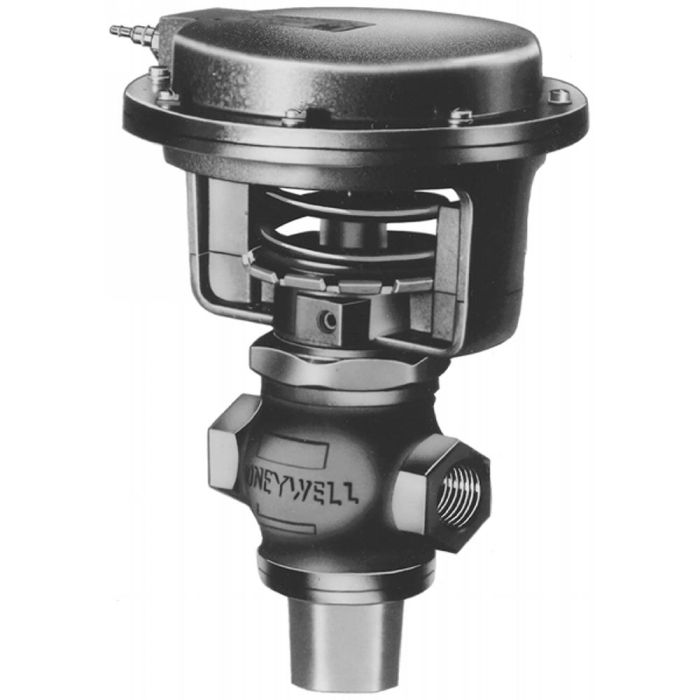

Pneumatic Valve
by
done_outline8888 in stock
addShow Locations
removeHide Locations
3 Way, 1/2 in., 5.5 Cv, Two Position, NPT, Angle, 6 psi To 9 psi.
Features
Self-Adjusting, Spring-Loaded Teflon Cone Packing
Removable Composition Upper And Lower Disks
Actuator Can Be Rotated On Valve Bonnet For Alignment With Air Piping
Cast Bronze Body, 1/4 in. Stroke
Technical Details
Service
Control Main Airflow In large Day-Night Or Summer-Winter Pneumatic Control Systems
Operating Conditions
35 F To 115 F (2 C To 46 C)
Maximum Diaphragm Pressure
25 psi
