VRN2BGPA3001

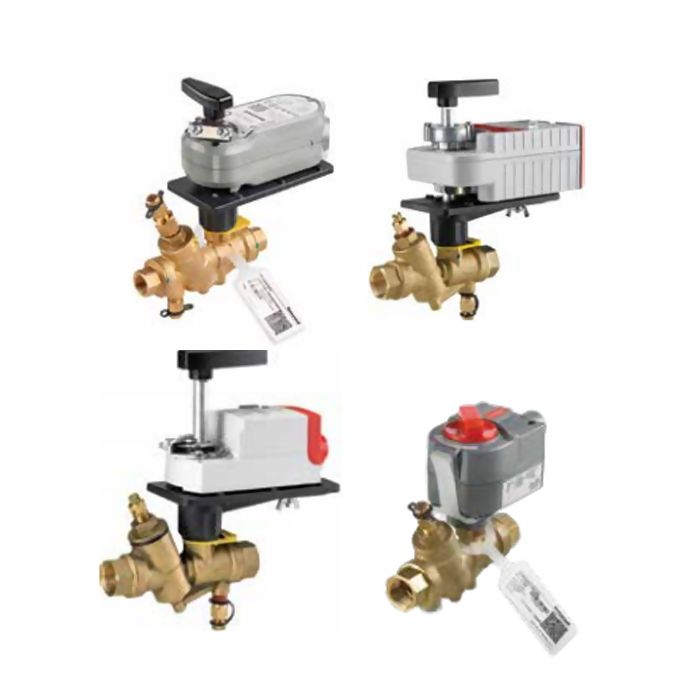

PICV, 2 Way, 3/4 in, 5 GPM

done_outline8888 in stock

addShow Locations removeHide Locations

Pressure Independent Control Valve, NPT Threaded, Nickel Chrome Plated Brass Ball And Stem, Forged Brass Body

Features

Differential Pressure Regulator For Constant Pressure Drop Across Valve Seat

Positive Pressure, Rolling Diaphragm Regulator Design For Flow Control Ball Insert

Multiple Maximum Flow Rates Available Per Valve Size

Patented Ball Seals For Low Operating Torque

Spring Return Actuators Field-Configurable For Normally Open Or Normally Closed Fail-Safe Position

Removable, Manual Operating Handle To Control Valve During Installation Or In An Event Of Power Failure

Upstream Test Port For Venting Or Pressure Gauge Attachment

Three Actuator Orientations On The Valve For Cramped Spaces

Integral Snubber Eli mates Effect Of System Pressure Fluctuations And Entrapped Air While Improving Flow Performance

Technical Details

Service

Hot Or Chilled Water w/Up To 50% Glycol

Flow Characteristic

Equal Percentage

Operating Temperature

-4 F To 131 F (-20 C To 55 C)

Close-Off Pressure

100 psid
