VRN2DSPXE101

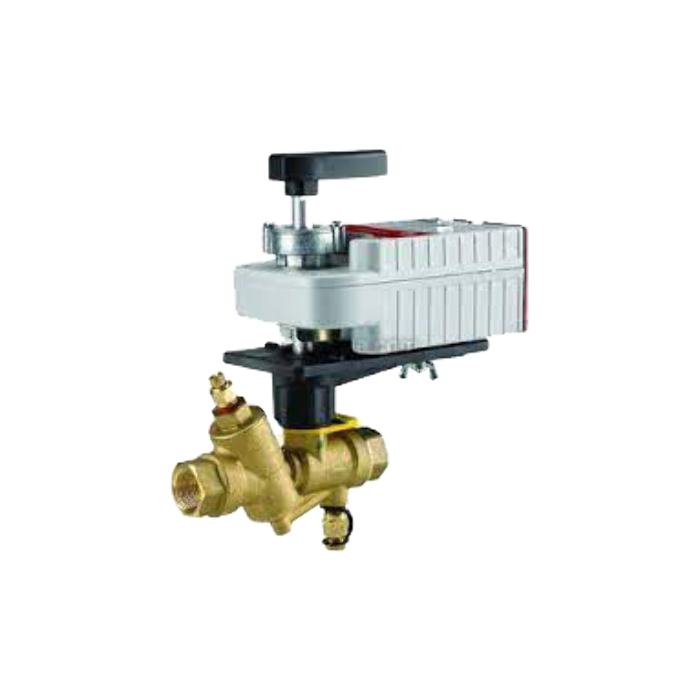

PICV Assembly, 2 Way, 1-1/4 in. NPT
by
done_outline8888 in stock
addShow Locations
removeHide Locations
Pressure Independent Control Valve, 35 gpm, Nickel Plated Brass Trim, Direct Coupled Actuator, 27 in-lb, Spring Return, 24 VAC/DC, Floating Or Modulating Controls, 2 To 10 VDC Control Signal, With Feedback.
Technical Details
Service
Chilled Or Hot Water With Up To 50% Glycol; Not For Use With Steam Or Fuels
Flow Characteristic
Equal Percentage With Flow Control Insert
Operating Conditions
14 F To 131 F (-10 C To 55 C)
Close-Off Pressure
100 psid
Power Consumption
2 VA Holding, 4 VA Driving
Electrical Connection
Cable
Operating Conditions
-40 F To 150 F (-40 C To 65 C)
Housing
NEMA 2, IP54
