Z2075QPT-G+CQKX24

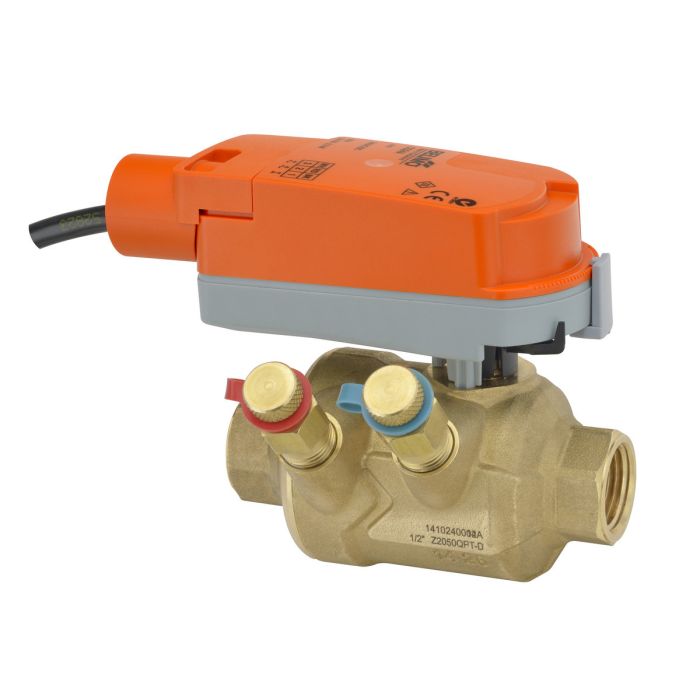

Zonetight Valve Assembly, 2 Way, 3/4 in.
by
done_outline8888 in stock
addShow Locations
removeHide Locations
Pressure Independent Quick Connect Valve, NPT, 9 GPM, Forged Brass Body, Stainless Steel Ball And Stem, Valve Actuator, Electronic Fail-Safe, On/Off Control, 24 VAC/DC.
Features
Suited For Large Commercial Buildings Where Higher Close-Off And Dynamic Balancing Is Required
Valve Fits In Space Restricted Areas And Can Be Assembles Without The Use Of Tools
Technical Details
Service
Chilled Or Hot Water, Up To 60% Glycol
Flow Characteristic
Equal Percentage
Operating Conditions
36 F To 212 F (2 C To 100 C)
Close-Off Pressure
200 psi
Power Consumption
2.5 W Running, 0.5 W Holding
Operating Conditions
35 F To 104 F (1.7 C To 40 C)
Electrical Connection
3 ft. 18 GA Plenum Cable With 1/2 in. Conduit Connector
Housing
NEMA 2, IP40
