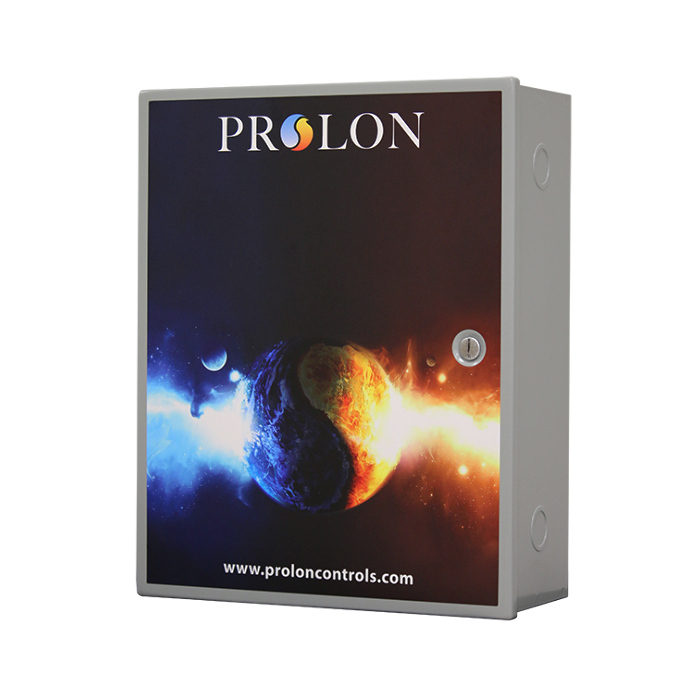

PL-PANEL-C1050-BLR
Single Boiler Control Panel
by
done_outline8888 in stock
addShow Locations removeHide Locations
The PL-C1050 Controller, NEMA 1 Enclosure, 3 AI 1 DI 4 DO 1AO, Modbus RTU, Removable Screw-Type Terminal Blocks.

Features

PI Control Loops, Prewired Panel
Pump Activity Based On Outside Temperature Or Call For Heat (Or Both)
Configurable Pump Exercise Sequence For Extended Periods Of Inactivity.
Supply Water Setpoint Reset Based On Outside Temperature.
Control Up To 2 Boiler Stages (Multiple Boilers Or A Singe Multistage Boiler)
Control 1 Modulating Boiler With Optional Backup Stage.
Various Lead-lag Sequences For The Pumps And Boilers
Offset The Supply Water Setpoint Based On A Network Received Demand Or Occupancy.
Optional Control Sequence For A Three-Way Valve.

Technical Details

Communication Network
Modbus RTU
IO
9
Ports
RS-485, Removable Screw-Type Terminal Blocks
Type
Configurable
Application
Boilers
Mounting
Panel Mount
