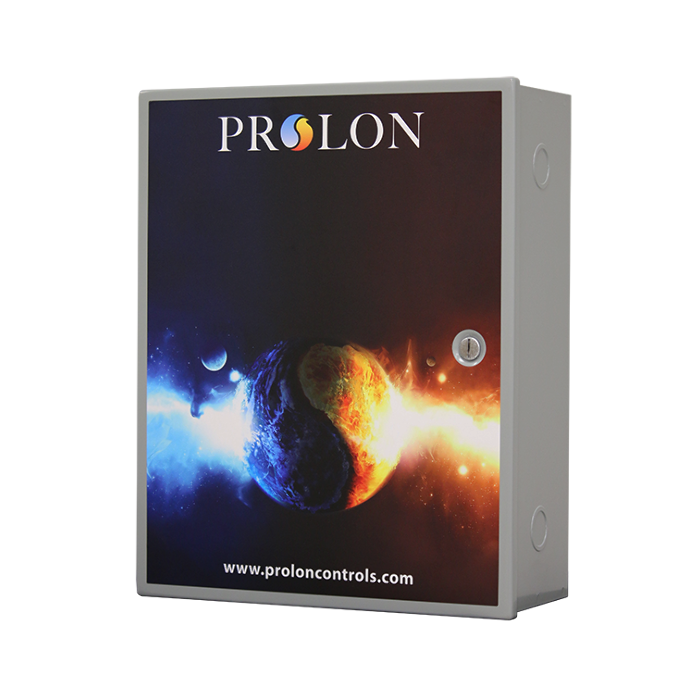

PL-PANEL-M2000-CHL
Single Chiller Control Panel
by
done_outline8888 in stock
addShow Locations
removeHide Locations
The PL-M2000 Controller, NEMA 1 Enclosure, 9 UI 5 DO 3 AO, Modbus RTU, RS-485 And Removable Screw-Type Terminal Blocks.
Features
Hand/Off/Auto, Log/Trending, PI Control Loops, Prewired Panel, Real Time Clock
Pump Activity Based On Outside Temperature Or Schedule (Or Both)
Configurable Pump Exercise Sequence For Extended Periods Of Inactivity.
Supply Water Setpoint Reset Based On Outside Temperature, Return Temperature Or Demand.
Control Up To 4 Chiller Stages (Multiple Chillers Or A Single Multistage Chiller Or Combination)
Various Lead-lag Sequences For The Pumps And Chillers
Chiller Lockout Or Stage Down Based On Entering Or Leaving Condenser Water Temperature Limits.
Can Modulate A VFD For Each Pump To Maintain A Fixed Water Pressure Setpoint.
Internal Clock With Configurable Schedules And Calendars.
A Manual/Off/Auto Switch For Each Of The 8 Outputs.
Technical Details
Communication Network
Modbus RTU
IO
17
Ports
RS-485, Removable Screw-Type Terminal Blocks
Type
Configurable
Application
Chillers
Mounting
Panel Mount
