PL-PANEL-M2000-HP
Single Heat Pump Control Panel
by
done_outline8888 in stock
addShow Locations
removeHide Locations

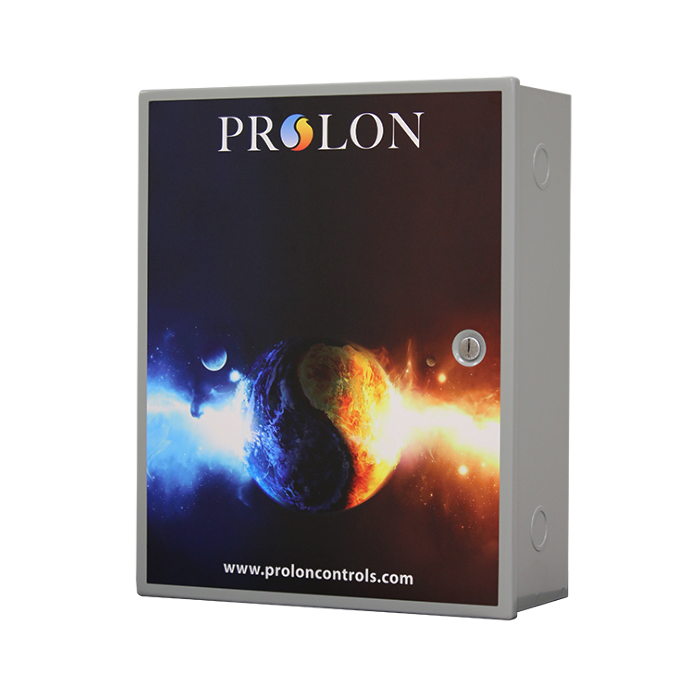

The PL-M2000 Controller, NEMA 1 Enclosure, 9 UI 5 DO 3 AO, Modbus RTU And BACnet MS/TP, RS-485 And Removable Screw-Type Terminal Blocks.
Features
Hand/Off/Auto, Log/Trending, Prewired Panel, Real Time Clock
Internal Clock With Configurable Schedules And Calendars
Works In Air-To-Air Mode Or Water-To-Air Mode (Configurable).
A Manual/Off/Auto Switch For Each Of The Eight Outputs.
Supports Both Modbus And BACnet Communication Protocols.
5 Digital Outputs And 3 Analog Outputs Equipped With Resettable Fuses.
Control Up To 2 Compressor Stages Or 2 Stage Auxiliary Heating Stages.
Technical Details
Communication Network
BACnet MS/TP, Modbus RTU
IO
17
Ports
RS-485, Removable Screw-Type Terminal Blocks
Type
Configurable
Application
Heat Pumps
Mounting
Panel Mount
