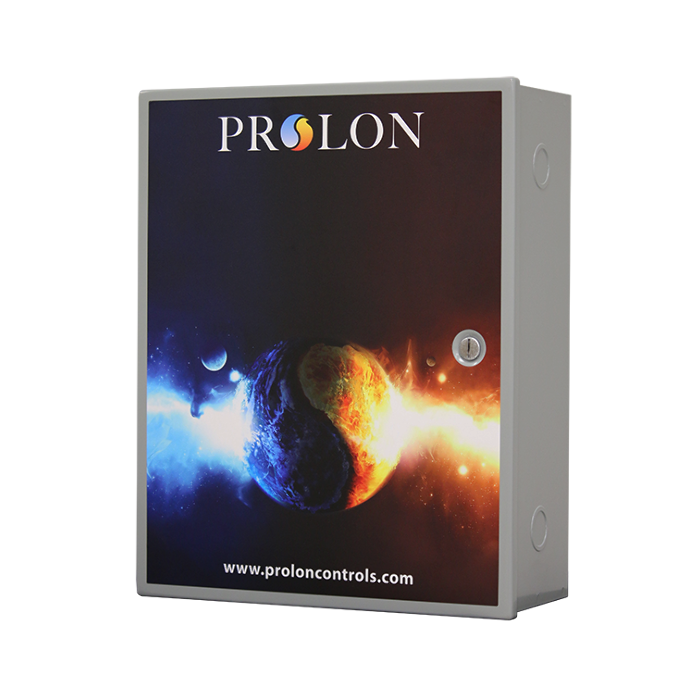

PL-PANEL-M2000-HPS
Standalone Heat Pump Control Panel
by
done_outline8888 in stock
addShow Locations removeHide Locations
The PL-M2000 Controller, NEMA 1 Enclosure, 9 UI 5 DO 3 AO, Modbus RTU, RS-485 And Removable Screw-Type Terminal Blocks.

Features

Hand/Off/Auto, Log/Trending, Prewired Panel, Real Time Clock
Designed For Unitary Systems Using A Single Space Temperature Sensor
Internal Clock With Configurable Schedules And Calendars.
Works In Air-To-Air Mode Or Water-To-Air Mode (Configurable)
A Manual/Off/Auto Switch For Each Of The 8 Outputs
5 Digital Outputs And 3 Analog Outputs Equipped With Resettable Fuses.
Built-In Protection Sequences With Configurable Temperature Limits And Minimum Delays.
Control Up To 2 Compressor Stages And 2 Stage Auxiliary Heating Stages.

Technical Details

Communication Network
Modbus RTU
IO
17
Ports
RS-485, Removable Screw-Type Terminal Blocks
Type
Configurable
Application
Heat Pumps
Mounting
Panel Mount
