PL-PN2-NC-HMI-M2-RTU

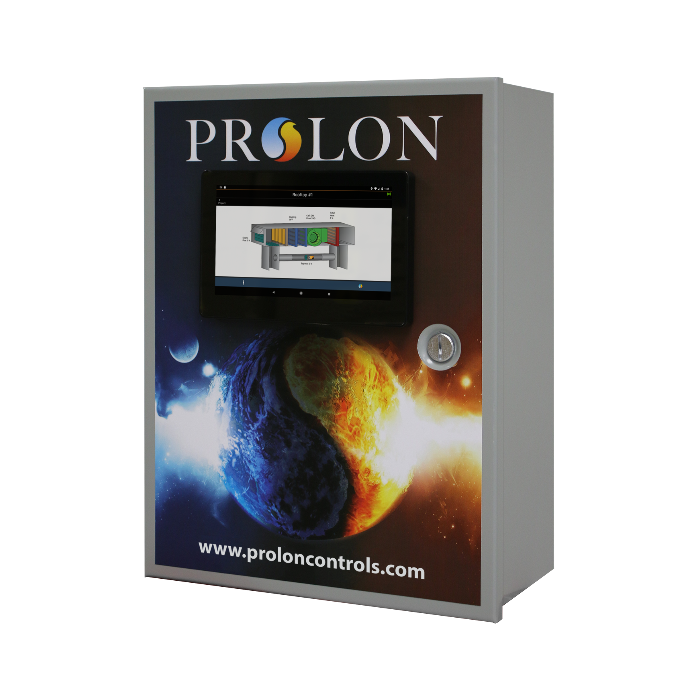

Master Control Panel, 10 in. Display
by
done_outline8888 in stock
addShow Locations removeHide Locations
The PL-NC2000 And PL-M2000 Rooftop Unit Zoning Controller, NEMA 1 Enclosure, 9 UI 5 DO 3 AO, Modbus TCP/IP And Modbus RTU, 3 RS-485 Ports And Removable Screw-Type Terminal Blocks. Replaces Part Number: PL-PANEL-MASTER-RTU-TAB

Features

Hand/Off/Auto, LCD Display, Log/Trending, Prewired Panel, Real Time Clock
Pre-wired Industrial Control Panel Equipped With Clearly Marked Terminal Blocks And Fuses.
Allows For Remote Configuration Of Your Prolon System Locally Or Over The Internet
Share Outside Air Temperature And Occupancy Data To Other Prolon Controllers
Sends Up To 200 Email Alerts Based On User-Configurable Conditions
Records Up To 100 Simultaneous Trend Logs, Saved Onto A Standard SD Card
Stores Up To 16 Configurable Weekly Schedules And Annual Calendars
Real Time Clock Synchronizes Over The Internet, Can Keep Accurate Time For 10 Days Without Power

Technical Details

Communication Network
Modbus RTU, Modbus TCP/IP
IO
17
Ports
RS-485, Ethernet, Removable Screw-Type Terminal Blocks, USB
Controller Product Family
PL-Panels
Type
Configurable
Application
Network, Rooftop
Mounting
Panel Mount
