EFLOW6N8D

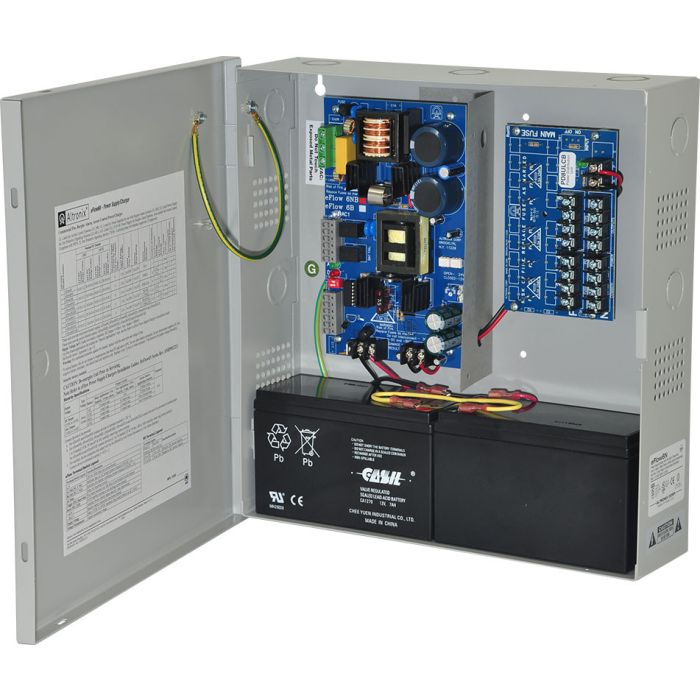

eFlow6N8D Power Supply/Charger
by
done_outline8888 in stock
addShow Locations removeHide Locations
Converts A 120 VAC 60 Hz Input Into Eight PTC Protected Class 2 Powerlimited Outputs, Selectable For 12 VDC Or 24 VDC With A Total Of 6 Amps Maximum Supply Current.

Features

Eight (8) Class 2 rated PTC protected power-limited outputs (auto-resettable).
12 VDC Or 24 VDC @ 6.0 Amps Supply Current
Outputs Are Rated @ 2 Amps
Overvoltage Protection
Automatic Switch Over To Stand-By Battery When AC Fails. Transfer To Stand-By Battery Power Is Instantaneous With No Interruption
Supervised Fire Alarm Disconnect (Latching Or Non-Latching) 10K EOL Resistor, Operates On A Normally Open Or Normally Closed Trigger

Technical Details

Enclosure:
Wall Mount Enclosure For Indoor Use, Dimensions 13 in. W x 13.5 in. H x 3.25 in. D
