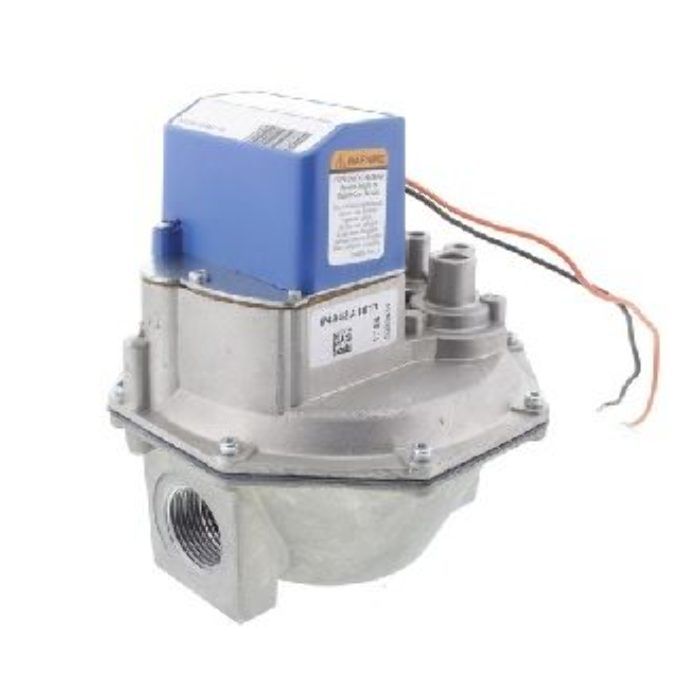

Diaphragm Gas Valve, 2 in., NPT
done_outline8888 in stock
addShow Locations removeHide Locations
Two Stage Pressure Regulating Valve, 24 VAC, 1/2 psi, 6 Second Maximum Valve Opening Time, 3 To 4.5 High Fire, 0.8 To 2 Low Fire Regulator Setpoint Adjustable Range.


Designed For Replacement For V4844/V8844 Gas Valves
Suitable For Use On Atmospheric Boilers, Commercial Water Heaters, And Rooftop Heaters
Solenoid Operated Diaphragm Valves That Combine The Functions Of A Safety Shutoff And Pressure Regulation In A Single Unit
Used With 24 VAC Dual-Stage Thermostats Or Controllers
Valve Closes On Power Failure; Recommended For Final Shutoff Service

Technical Details

Type Of Gas
Body Pattern
Straight-Through, Non-Offset
870 cfh To 3000 cfh
Operating Conditions
-40 F To 150 F (-40 C To 66 C)
