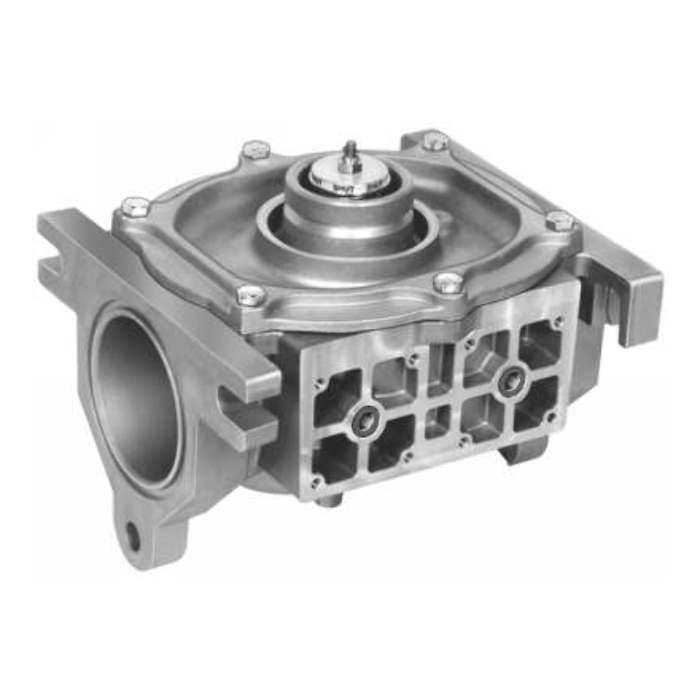

V5097B1002/U
Gas Valve, Small Body Valve Train
by
done_outline8888 in stock
addShow Locations
removeHide Locations
Small Body Low Pressure Integrated Valve With Characterized Guide Safety Shutoff, 3/4 in., 1 in., 1-1/4 in, Or 2 in. Pipe Sizes, 5 psi Maximum Operating Pressure, Used With V9055, V4055 And V4062.
Features
Includes Three 1/4 in. To 18 NPT Upstream And Two 1/4 in. To 18 NPT Downstream Taps
Mount Directly In Gas Supply Line
Seven Pipe Adapter Sizes From 3/4 in. To 3 in. Have NPT Or BSP Threaded Connections
CE Version Provides An Additional Downstream Tap And Plug
Yellow SHUT Indicator Attached To The Valve Stem Provides An Indication Of The Valve Closed Position
Has A Characterized Guide And In Combination With The V4055, V4062, And V9055 Fluid Power Actuators, Provides Slow-Opening, HI-LO-OFF, And Modulating Functions, Respectively
Technical Details
Type Of Gas
Natural Or LP
Capacity
665 cf/hr To 3620 cf/hr
Operating Conditions
-40 F To 150 F (-40 C To 66 C)
