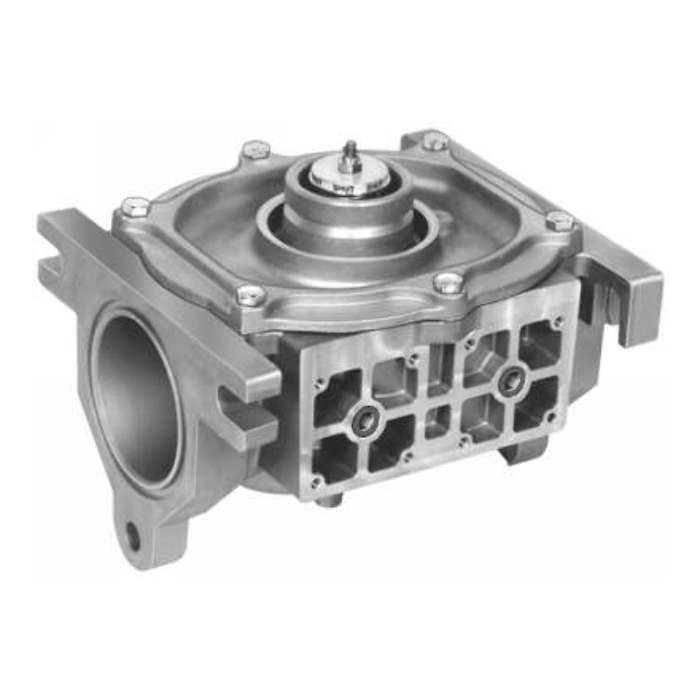

V5097D1016/U
Gas Valve, Large Body Valve Train
by
done_outline8888 in stock
addShow Locations
removeHide Locations
Large Body High Pressure Integrated Valve With On/Off Safety Shutoff, 2 in., 2-1/2 in., Or 3 in. Pipe Sizes, 5 psi Maximum Operating Pressure, Used With V9055, V4055 And V4062.
Features
Includes Three 1/4 in. To 18 NPT Upstream And Two 1/4 in. To 18 NPT Downstream Taps
Mount Directly In Gas Supply Line
Seven Pipe Adapter Sizes From 3/4 in. To 3 in. Have NPT Or BSP Threaded Connections
CE Version Provides An Additional Downstream Tap And Plug
Yellow SHUT Indicator Attached To The Valve Stem Provides An Indication Of The Valve Closed Position
For On/Off Service
For High Pressure Applications
Technical Details
Type Of Gas
Natural Or LP
Capacity
3620 cf/hr To 5230 cf/hr
Operating Conditions
-40 F To 150 F (-40 C To 66 C)
